Automotive Car Motor Starter Armature Testing Equipment Auto Positioning 23 Slots - China

price: check with company for price

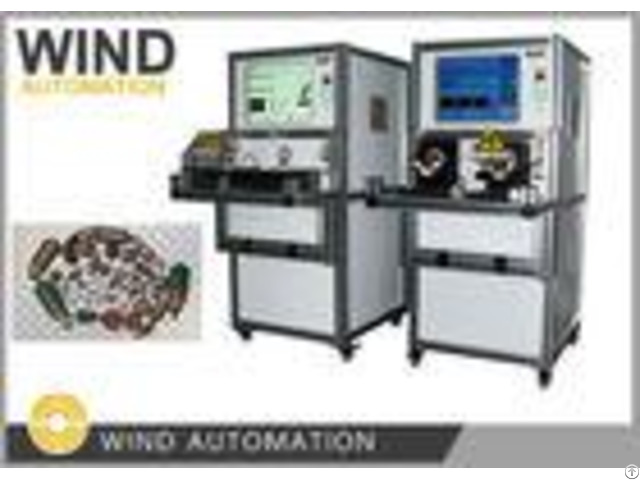

Auto Positioning 23 Slots Automobile Automotive Car Motor Starter Armature Testing Machine WIND-ATS-02 Application: Starter armature upto 36 slots covering 13, 17, 19 (few), 21, 23, 25, 27, 28, 29, 33slots (common) Advantages: 1. Automatic positioning, the operator no need to check initial positioning manually, Make the testing convenient and easier 2. 100% Satisfied feedback from starter armature manufacturers Technical Data: 1. Bar to Bar resistance, 0.01m~10m (Out of range display OVER) Four-terminal measurement to ensure accuracy 2. Welding resistance, 0.001m-10m (Out of range display OVER) Six-terminal measurement to ensure accuracy 3. Cross resistance 0.01m-10m Four-terminal measurement to ensure accuracy 4. Surge 100-1000V (100V/time) Pulse crest:0.5u sec, Frequency 1~40MHz Standard waveform is Write, OK waveform is Green, NG waveform is Red 5. Isolation resistance DC 500V Testing time:1~10s (0.1s/time) Range:1~500M Accuracy: 5% 6. Hipot AC 100-1000V Testing time:1~10s (0.1s/time) Armature commutator bars 36 bars Testing panel cycle time: 8~9s (according to 33bars) 13, 17, 19 (few), 21, 23, 25, 27, 28, 29, 33slots (common) Main Configuration: 15 Touch screen Sampling Chip: BB Relay:NAIS High voltage relay:Meder Pneumatic parts:Airtec Power: AC 220V, 50Hz Air pressure:0.4~0.6MPa Temperature:0~45 Dimension: 950mm*1250mm*580mm HS Code:9030390000 Question and Answer: - - - - Now we produce armatures with 29 slots, but we know some armatures with 33 slots and even 38 slots. Does the machine has capacity to test armatures with this quantity of slots? | Standard machine WIND-ATS-02 can test with most 36slots only | All the slots testing data will be displayed separatedly with identification on the screen? | Yes, | Is it possible to have three languages on the machine? Portuguese, English and Mandarin | English and Mandarin | Please describe the tests that the machine is able to do | 1. Bar to bar resistance (Inter-chip resistance of two commutator bars) 2. Welding resistance (To check the welding quality, the smaller the better) 3. 180 Cross resistance (Bar to bar resistance of commutator which is 180 angle with opposite side) 4. Surge (Between the turns of the coils, comparing waveforms) 5. Isolation resistance (Resistance of the coils and stack core) 6. Hi-pot (High voltage between the coils and armature stack core) | How many different recipes we can setup and save on the machine? | 510 sets recipes | Please describe the calibration procedure, short description | Use standard resistance to calibrate | Is there any kind of restriction due to the size of the armature? | Use different fixture to adapt to | What is the average time for one test of one armature? | About 15s' (including initial auto positioning) | Please decribe to us the main parts brand on the machine | Sampling Chip: BB(USA import) Relay:NAIS(Jpan Panasonic) High voltage relay:Meder (Germany import) Pneumatic parts:Airtac | What is the warranty time and terms? | 15 months from date of B/L, please refer to attached after sales details | Explain to us the welding resistance test | Six wiresl balancing measurement method to ensure accuracy | Please tell us the size na weight of this machine | Net weight 150KG Dimension Dimension: 950mm*1250mm*580mm | What is the Installed power of the armature tester? | 1500W | Is the machine 50Hz or 60Hz? | 50Hz or 60Hz, It's OK, no effect of testing | What is the voltage? | | If I put an armature with short circuit, after the machine refuses it, do I have to resetup the machine? | You don't have to reset up, you can test the next armature directly | Does the machine has conection to the net? With this we can save the testing data in our server, make remote access | Yes, machine can have this function | Is it possible to add working instruction in the machine? Like a PDF file or similar | Yes, | Is it possible to print the test results? | Yes, you need a printer by yourself | Do we have the possibility to chose which test we want to make? | Yes, you can choose which test item to make | Does the armatue anaylser has a communication port that is able to connect to a fiber laser printing machine and send serial number to be printed on the part? | Yes, machine can have this function | - - - - Contact:Shanghai Wind Automation Equipment Co., Ltd Email: emily@motor-machinery.com Skype: motor.machinery Mobile: +86-17721374887
