Uhf Vhf 174 230 470 862mhz Dmb Dvb T Indoor Digital Tv Antenna 3dbi Iec F Male - China

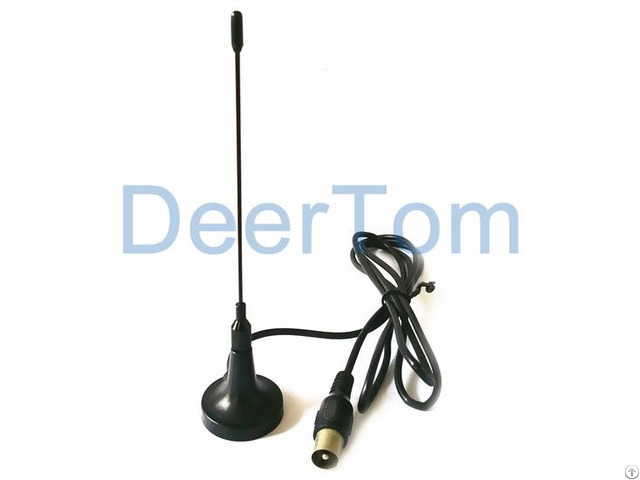

UHF VHF Internal 174-230/470-862MHz DMB DVB-T Indoor Digital TV Antenna 3dBi IEC F Male

ELECTRICAL

Model DT-OMA174-862-3A

Frequency Range 174-230/470-862MHz

Gain 3dBi

VSWR ≤2.5

Polarization Vertical

Radiation Omni Directional

Max Power 50W

Nominal Impedance 75Ω

Lightning Protection DC Ground

MECHANICAL

Connector F Male or IEC Connector or customized

Cable 3 meters RG174 or customized

Antenna Length Φ30x(148±1) mm

Weight 40g

Working Temperature -40~+60℃

Colour Black

Installation Way Magnetic Mount
