Outdoor Digital Tv Yagi Antenna Dvb T2 580 690mhz 12dbi 7 9 Elements F - China

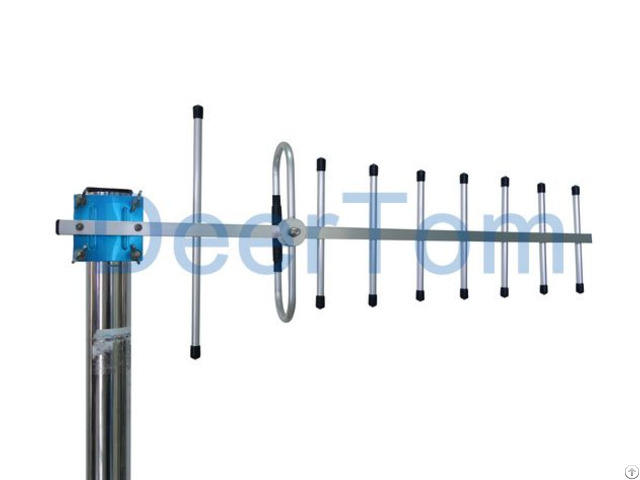

Outdoor Digital TV Yagi Antenna DVB-T2 580-690MHz 12dBi 7 elements 9 elements F

ELECTRICAL

Model DT-YA580-690-12

Frequency Range 580-690MHz

Gain 12dBi

Beamwidth H: 36°, E: 32°

VSWR ≤1.5

Polarization Vertical or Horizontal

Max power 50W

Nominal Impedance 75Ω

Lightning Protection DC Ground

MECHANICAL

Connector F Female or customized

Antenna Dimension 1020mm

Weight 0.8kg

Radome Material Aluminium

Rated Wind Velocity 60m/s

Elements 9
