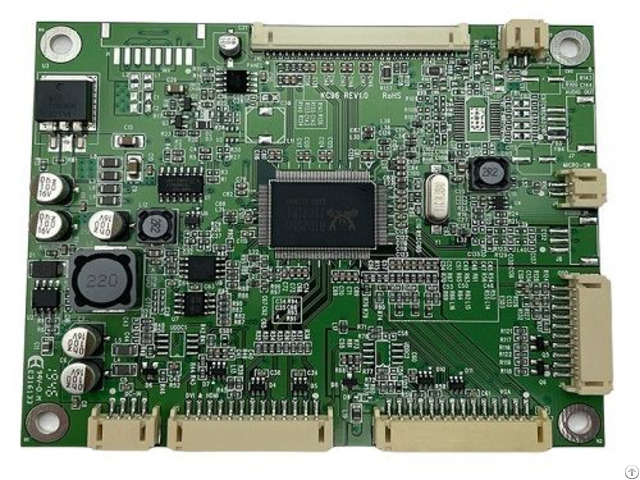

Lcd Monitor Circuit Board - Taiwan

Model: KC96

This LCD monitor circuit board offers the following features:

1 - Compatible from VGA up to 1920x1200 resolution TFT LCD panel.

2 - Supply single pixel(24bits)or dual pixel(48bits) digital RGB output.

3 - Support Vertical refresh rate up to 75Hz for VGA~1920x1200 and 60Hz for higher resolution of VESA Standard Timing.

4 - Support VGA analog standard input signal(14-pin 2.0mm connector).

5 - Automatic detection of separate synchronize and composite synchronizes of VGA.

6 - Support Audio Amplifier function with stereophonic output connector (option).

7 - Support Digital Signal input (13 pin 2.0mm connector)

8 - Micro switch detect function for auto-on/off power save .

Detect by ground

9 - connection to insure the life of the micro switch .

10 - Full SMD / Slim type (Less than 7.5mm height) specially suitable for KVM .

11 - Support non-linear scaling from 4: 3 to 16: 9 or 16: 9 to 4: 3

12 - Support 8-bit output through either eDP

13 - Support 4 lane eDP HBR

14 - Meet RoHS requirement.

Electrical Specification: 1 - Power supply

Input for A/D board : 12V DC 3A

Output for eDP Panel : 3.3V / 5V

Output for other board : 5V

2 - Power consumption (Panel / Inverter not included )

Power saving / off : <0.15W / <0.12W

3 - Audio output : Speaker : 8Ω, 2W

4 - Environment

Operating temperature /humidity : 0℃ ~ 50℃/ 0 ~ 80% ( Non- condensing)

Storage temperature /humidity : -40℃ ~ 70℃/ 0 ~ 90%
