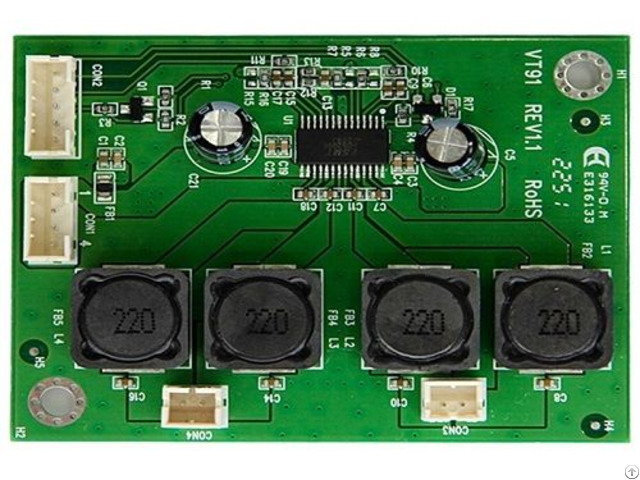

Audio Amplifier Driver Board - Taiwan
price: contact company for price
Model: VT91
Features:
1 - Class D Audio stereo amplifier, including mute and power standby control
2 - High power CMOS technology
3 - Analog stereo input
4 - Max.
output power 10W (8Ω) × 2 @ THD=10%
5 - High efficiency Class-D operation, low heat dissipation This audio amplifier driver board features advanced Class D design for high efficiency and low heat, supporting stereo input and dual 10W output—ideal for embedded and industrial audio applications.
Input Connector
1 - CON1 for DC 12V power input
2 - CON2 for stereo audio signal input, mute control and power standby control Output Connector: CON3, CON4 support 1 set L/R 10W + 10W speakers Electrical Specification
A.
Power Supply: Input: DC 12V
B.
Environment
1 - Operational Temperature: 0°C ~ 50°C
2 - Storage Temperature: -20°C ~ 70°C
3 - Operation Humidity: 20% ~ 80%
4 - Storage Humidity: 10% ~ 90% (non-condensing)
C.
Load: Output: 10W + 10W load 8Ω THD+N 10% Connector, Pin Assignment & Jumpers: Pin define for connectors
Company Contact:
- Posted By: Teleview Technology Co., Ltd.
- Phone: 886-2-77303171
- Address: 10F., No.352, Sec. 2, Zhongshan Rd., Zhonghe Dist.,, New Taipei City, na , Taiwan
- Email:
- Website: https://www.teleview.com.tw
Published date: July 19, 2025
- Business Description: Teleview Technology Co., Ltd. was founded in 2001 by a group of experienced display development engineers.
With its excellent A/D motherboard development capabilities and rich production experience, Teleview has not only designed, produced and sold A/D motherboards for 23 years, but also accepts OEM or ODM commissions to develop and design for well-known corporate customers.
Teleview is now one of the three major A/D motherboard development and design companies in Taiwan.
In terms of A/D motherboard supply, both quality and design capabilities have been highly praised by customers.
