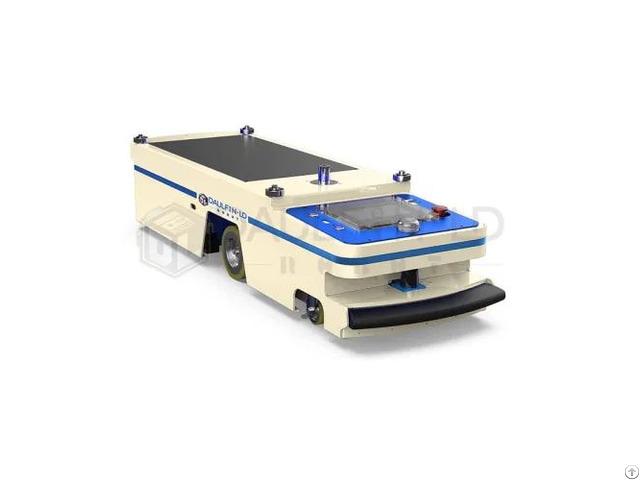

Dl Lt 01 Unidirectional Latent Traction Agv 500 1000 1500kgs - China

Daulfinld Unidirectional Latent Traction AGV: Revolutionizing Under-Drive Towing Robot Efficiency

Unidirectional Latent Traction AGV technology redefines material handling automation.

The Daulfinld DL-LT-01 model exemplifies cutting-edge Under-Drive Towing Robot​​ engineering, delivering unparalleled space utilization and operational reliability for modern industrial environments.

Our Certified Latent Tractive AGV has an optimized motion performance to achieve more cost-effective productivity.

After receiving system instructions, AGV will automatically move to the bottom of material vehicles, and rise the towing rod to hook material vehicles, so as to achieve end-to-end material transfer.

roduction procedures.

Specifiation:

Dimension L*W*H (mm) L1450*W420*H290 (mm)

Maximum load 500KG\1000KG\1500KG

Navigation Magnetic Navigation

Walking direction Forward, Turn left and Right

Rated Speed (m/m) 45

Navigation accuracy ±10mm

Stopping accuracy ±10mm

Max.

Rotation Speed (°/s) 200

Safety warning ●Light warning ●Voice broadcast

Position Accuracy (mm) ±10, ±1

Battery type Leadacid / Lithium battery

Charging method Side charge / Ground charge

Charging Time (h) 1.5

Driving Mode Differential Drive

Lifespan >10years
