Utsource Electronic Components Rjh3044 - China

price: 0.45 Dollar US$

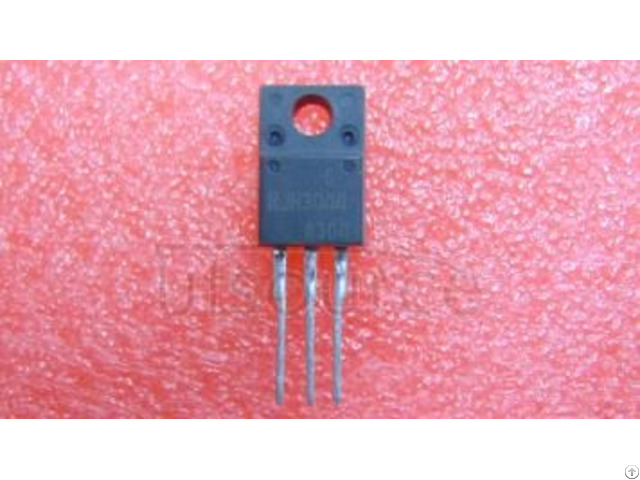

Utsource Electronic Components Rjh3044

Products Photos Catalog Utsource Electronic Photos Catalog

1 - Description

Collector to Emitter voltage VCES 360 V

Gate to Emitter voltage VGES ±30 V

Collector current Ic 35 A

Collector peak current ic(peak) Note1 250 A

Collector to emitter diode Forward peak current iDF(peak) Note1 100 A

Collector dissipation PC Note2 60 W

Junction to case thermal impedance qj-c 2.08 °C/ W

Junction temperature Tj 150 °C

Storage temperature Tstg –55 to +150 °C

2 - Features

> Trench gate and thin wafer technology (G6H-II series)

> High speed switching: tr =80 ns typ., tf = 150 ns typ.

> Low collector to emitter saturation voltage: VCE(sat)= 1.5 V typ.

> Low leak current: ICES = 1 mA max.

> Built-in Fast Recovery Diode: VF = 1.4 V typ., trr = 23 ns typ.

> Isolated package: TO-220FL


Company Contact:


  • Phone: 0755-23959113

  • Address: 10B2,BLOCK B,WORLD TRADE PLAZA,FUHONGA RD.,FUTIAN,SHENZHEN,51803 3 CHINA 电话:0755-23959113, SHENZHEN , GUANGDONG , China

  • Email: Email


Published date: May 4, 2017

  • Business Description: UTSOURCE is an amazing online electronic components store，provides different types such as electronic components , passive components, arm development board, Cell Phone Repair Parts，etc., and various product types，we also provide satisfying one-stop package service for customers.
