Utsource Electronic Components L9762 Bc - China

price: 2.40 Dollar US$

1. Description

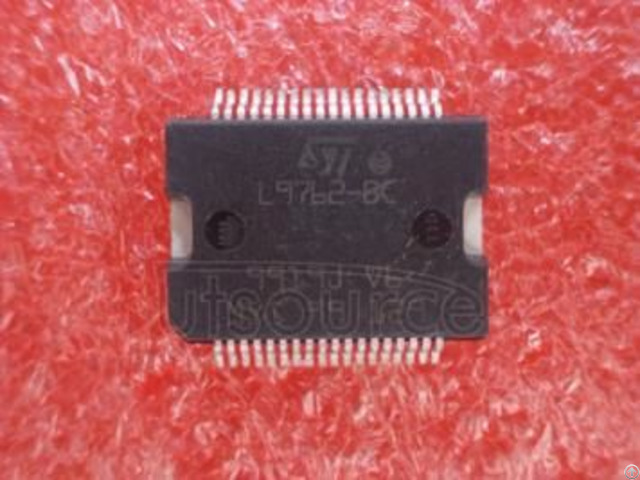

The L9762-BC represents a high efficiency, constant frequency PWM regulator with integrated boost diode and FET. Designed for use in white LED driving applications, the L9762-BC features efficiencies up to 85%. It operates at1.35MHz switching frequency and operates from an input voltage of between 2.7V and 5.5V. The maximum output voltage of 27V enables the L9762-BC to drive up to 6 LEDs in series. It is also possible to use the L9762-BC to drive LEDs in series/parallel combination for applications requiring up to 15 LEDs.
2. Features
> Up to 6 LEDs in series
> 27V maximum output
> 2.7V to 5.5V input
> Up to 85% efficient
> 1.35MHz constant frequency
> Enable/PWM dimming control
> Pb-free plus anneal available (RoHS compliant)
