Ykjd 8008nl 7499010211a 1 Port Gigabit Through Hole Magnetic Rj45 Modular Connectors - China

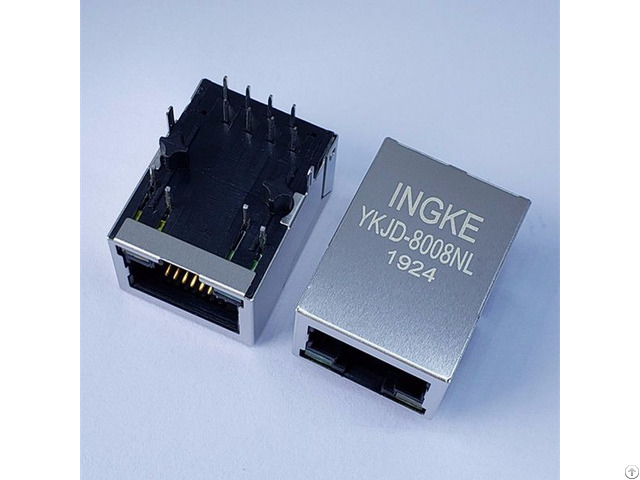

Ingke YKJD-8008NL Direct Substitute 7499010211A 1 Port Gigabit Through Hole Magnetic RJ45 Modular Connectors Part Number: 7499010211A

Made in China: YKJD-8008NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100 Base-T, AutoMDIX

Mounting Type: Through Hole

Orientation: 90°Angle (Right)

Termination: Solder

LED Color: Green - Yellow

Number of Cores per Jack: 4

Shielding: Shielded

Features: Board Guide

Tab Direction: Down

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Contact Finish Thickness: 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material: Copper Ally

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;7499051002 7499410420 7497111611A 7499511610 7498011001A 7499010004A 7498011008 7499211002A 74990101241 7499010126A 7499410221 7499021002A 7499010003A 74990101212 7498210220A 7497011611A 7498210002 7498210002 7498210002 7499211122A 7499121211 7499210124A 7499111000A
