Ingke Ykku 0329nl 100 Percent Cross 0826 1x1t Gh F Single Port Gigabit Poe Magnetic Modular Rj45 Ja - China

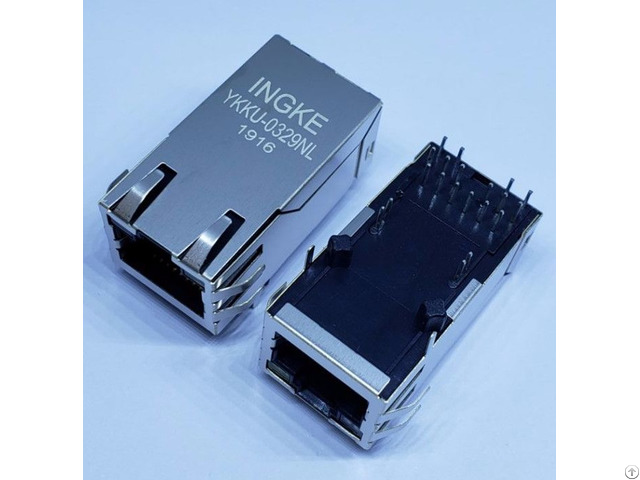

Ingke YKKU-0329NL 100% cross 0826-1X1T-GH-F Single Port Gigabit PoE+ Magnetic Modular RJ45 Jacks Bel Part Number: 0826-1X1T-GH-F

Made in China: YKKU-0329NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100/10 00 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)

Mounting Type: Through Hole

Orientation: 90°Angle( Right)

Termination: Solder

LED Color: Green, Orange-Yellow

Number of Cores per Jack: 8

Shielding: Shielded, EMI Finger

Features: Board Guide

Tab Direction: Up

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 30µin (0.76µm)

Shield Material: Copper Alloy

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;L811-1X1T-03-F 0817-1G1T-21-F 0817-1AX1-11-F L836-1J1T-43 2250066-1 2250015-1 2250056-1 2250548-1 2250015-3 SS-60300-059 SS-60300-014 2250504-1 G15-111T-076C G15-111T-038E SS-39100-039 G23-21YR-112 L829-1JX1-D2 L829-121T-43 L829-1JX1-43 0879-2C1R-AYA 0879-2X1R-AY 0863-2X4R-AY-F 0833-2X4R-AY-F 0833-2X4R-AV-F
