Rf Dual Junction Coaxial Circulator - China

price: 100.00 Dollar US$

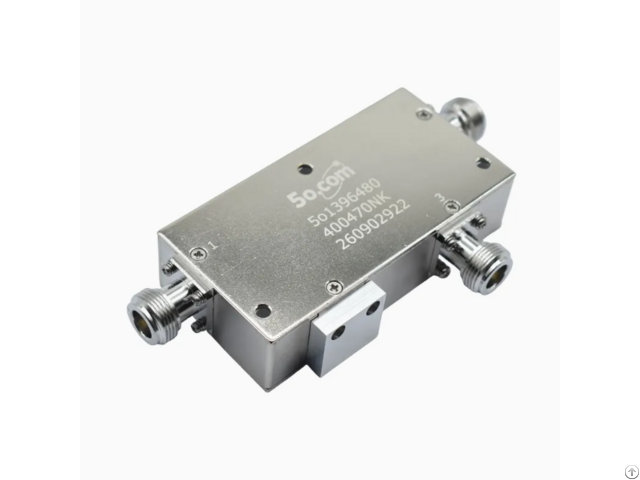

Rf Dual Junction Coaxial Circulator

Products Photos Catalog Dual Junction Coaxial Photos Catalog

Type: RF Dual Junction Coaxial Circulator

Brand: 5o.

com

Part Number: 5o1396480400470NK

Frequency Range(MHz: 400~470

Insertion loss(Max.

dB): 0.6dB

Isolation(Min.

dB): 45dB

VSWR: 1.2

Reverse Power: 400W

Forward Power: 400W

Connector Type: N Female

Operating Temperature: -30~+70degree

Storage Temperature: -55~+125degre e

Impedance: 50Ohm

Warranty: 1 year

Customize design: Available


Company Contact:


  • Phone: +8613902992860

  • Address: Longgang District, Shenzhen , Guangdong , China

  • Email: Email


Published date: October 12, 2026

  • Business Description: 5o.

    com Inc.

    is a modern high-tech enterprise specializing in the research, development, production, and sales of RF microwave passive components.

    Focusing on independent innovation, the company primarily manufactures microwave passive components such as RF isolators, circulators, coaxial loads (terminals), coaxial attenuators, power splitters, waveguide-to-coaxial converters, directional couplers, filters, and duplexers/multiplexers.
