Vhf Band 136 To 174mhz 4 Port Rf Dual Junction Coaxial Circulator - China

price: 350.00 Dollar US$

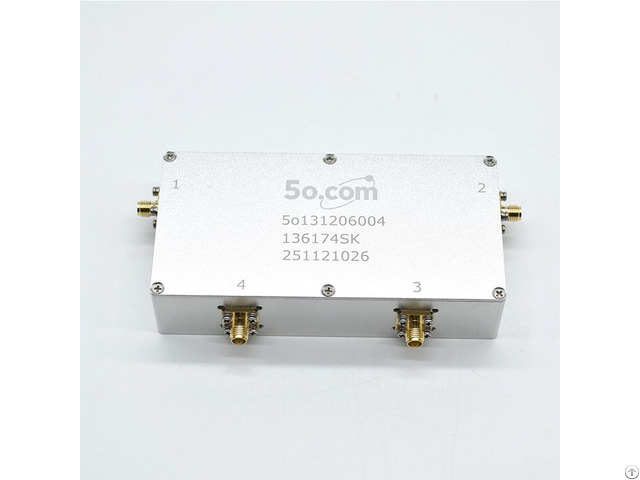

Vhf Band 136 To 174mhz 4 Port Rf Dual Junction Coaxial Circulator

Products Photos Catalog Vhf Band 136 174mhz Photos Catalog

Type: RF Dual Junction Coaxial Circulator

Brand: 5o.

com

Part Number: 5o131206004136174S K

Frequency Range(MHz): 136~174

Insertion loss(Max.

dB): 1.0dB

Isolation(Min.

dB): 44dB

VSWR: 1.2

Forward Power: 200W

Reverse Power: 200W

Connector Type: SMA Femlae

Operating Temperature: -40~+85degree

Storage Temperature: -55~+125degre e

Dimension: 120*60*28mm

Impedance: 50Ohm

Warranty: 1 year

Customize design: Available


Company Contact:


  • Phone: +8613902992860

  • Address: Longgang District, Shenzhen , Guangdong , China

  • Email: Email


Published date: September 10, 2026

  • Business Description: 5o.

    com Inc.

    is a modern high-tech enterprise specializing in the research, development, production, and sales of RF microwave passive components.

    Focusing on independent innovation, the company primarily manufactures microwave passive components such as RF isolators, circulators, coaxial loads (terminals), coaxial attenuators, power splitters, waveguide-to-coaxial converters, directional couplers, filters, and duplexers/multiplexers.
