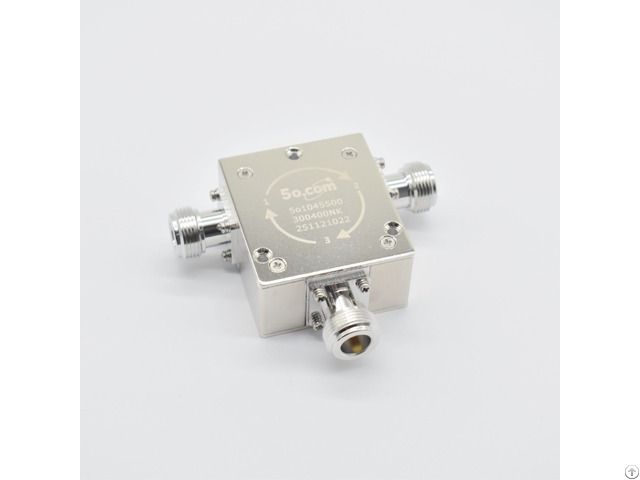

Coaxial Circulator 300 To 400mhz N Connector For Vhf Uhf Systems - China
price: 55.00 Dollar US$
Product Features:
Model Number: 5o1045500300400NK
Frequency Range: 300 to 400MHz
Isolation Min: 18dB
VSWR Max: 1.3
Insertion Loss Max: 0.6dB
Connector Type: N-K
Forward Power: 100W
Reverse Power: 100W
Impedance: 50 ohm
Operating Temperature: -30 to +70℃
Storage Temperature: -40 to +125℃
Dimensions: 45 mm x 50 mm x 24 mm Applications:
RF power amplifier protection in VHF UHF communication systems
Digital mobile and base station equipment
Medical communication and security devices
Military and commercial communication applications
Public safety and land mobile radio systems
Company Contact:
- Posted By: 5o.com
- Phone: 8613902992063
- Address: Software Industry Base, Shenzhen, 518000, China., Shenzhen , Guangdong , China
- Email:

- Website: https://www.5o.com/
Published date: December 11, 2025
- Business Description: 5o.
com is a modern high-tech enterprise specializing in the research, development, production, and sales of RF microwave passive components.
Focusing on independent innovation, the company primarily manufactures microwave passive components such as RF isolators, circulators, coaxial loads (terminals), coaxial attenuators, power splitters, waveguide-to-coaxial converters, directional couplers, filters, and duplexers/multiplexers.
These products are widely used in 5G communications, satellite navigation, radar electronic countermeasures, and aerospace applications.
We fulfill our corporate mission of achieving customer success with high-quality products, attentive service and outstanding social responsibility, and are committed to becoming a global benchmark in RF microwave components.
