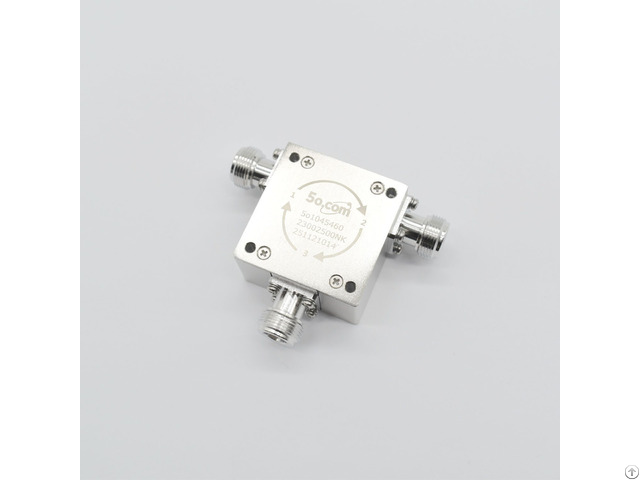

Coaxial Circulator 2300 To 2500mhz N Connector High Power 600w For Microwave Systems - China
price: 200.00 Dollar US$
Product Features:
Model Number: 5o104546023002500NK
Frequency Range: 2300 to 2500MHz
Isolation Min: 23dB
VSWR Max: 1.2
Insertion Loss Max: 0.3dB
Connector Type: N-K
Forward Power: 600W
Reverse Power: 600W
Impedance: 50 ohm
Operating Temperature: -40 to +85℃
Storage Temperature: -40 to +125℃
Dimensions: 45 mm x 46 mm x 26 mm Applications:
RF power amplifier protection in microwave communication systems
Digital satellite and mobile communication equipment
Medical communication and security devices
Military space and commercial microwave applications
WiFi ISM band and wireless infrastructure
Company Contact:
- Posted By: 5o.com
- Phone: 8613902992063
- Address: Software Industry Base, Shenzhen, 518000, China., Shenzhen , Guangdong , China
- Email:
- Website: https://www.5o.com/
Published date: December 11, 2025
- Business Description: 5o.
com is a modern high-tech enterprise specializing in the research, development, production, and sales of RF microwave passive components.
Focusing on independent innovation, the company primarily manufactures microwave passive components such as RF isolators, circulators, coaxial loads (terminals), coaxial attenuators, power splitters, waveguide-to-coaxial converters, directional couplers, filters, and duplexers/multiplexers.
These products are widely used in 5G communications, satellite navigation, radar electronic countermeasures, and aerospace applications.
We fulfill our corporate mission of achieving customer success with high-quality products, attentive service and outstanding social responsibility, and are committed to becoming a global benchmark in RF microwave components.
