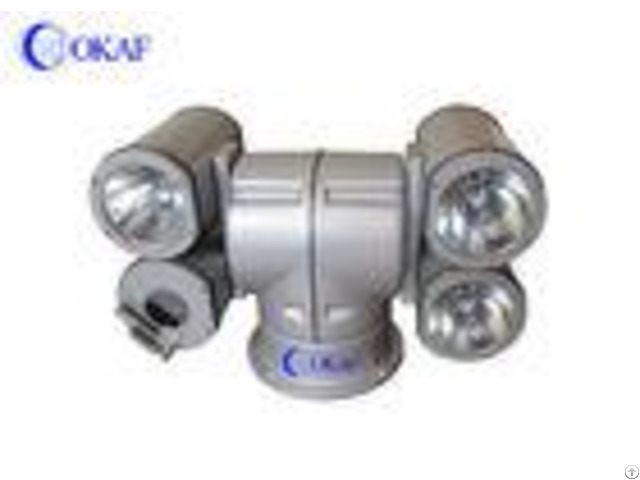

Full Hd Outdoor Wireless Security Camera Pan Tilt Zoom High Intensity Discharge Light - China

Outdoor Full HD PTZ Camera High Intensity Discharge Light Pan Tilt Camera Product description: 1, Acceptable to a variety signals of PTZ, IP/SDI/AHD/TVI/CVI/Analog .

2, IP PTZ supports IP and analog dual-outputs, dual control via RS485 and RJ45 network port to control PTZ camera 3, Solve the lighting conditions-frees fast target in the dark and search by strong light.

4, it is composed by strong light + infrared lighting, lighting distance is greater than 500 meters 5, The quality is stable.

6, Adopt worm gears drive method 7, Support coordinates and angles to accept instructions 8, PTZ has a built-in Voltage Regulator Module, protection device for stability and durability.

Parameters: - - - - PTZ Camera Parameters | Pan preset speed | 60/S(manual control 060/S) | Tilt preset speed | 30/S(manual control 030/S) | Pan range | 360 | Tilt range | 9090 | Electric machinery | stepping motor (worm and gear) | Preset positions | 256 Preset positions | Control Way | RS485(IP and SDI PTZ camera support RS485 and RJ45 dual- control protocol) | Baud rate | 2400Bps~19200Bps | Control protocol | Pelco-D/Pelco-P | Chroma | 6000K | Searchlighting Distance | 200m | light power | 35W*3pcs HID | Audio input/output | Support | Alarm Input/ Output | Support | Operating temperature | 35C~65C | IP Grade | IP66 | Power Supply | DC10.5V~DC16V(6A) | Weight | 10KG(net weight) | IP Movement | Model | 20IP | 30IP | Imaging sensor | 1/2.8inch ExmorCMOS | 1/2.8inchExmorCMOS | Effective pixels | 2.1 mega pixels | 3 mega pixels | Lens | 20X optical zoom f=4.7 -94.0mm (18.20.30X optional) | Min.

illumination | 0.095 lUx (F1.6, ICR open) | Frame rate | 25FPS & 30FPS | Double stream | H.

265/H.

264 | SDK Docking | standard ONVIF protocol, support SDK secondary development | SDI/AHD Movement | Model | SDI | AHD | Imaging sensor | 1/2.5inch CMOS | 1/4inch CMOS | Effective pixels | 30X 3 mega pixels (decided by movement) | 36X 2 mega pixels (decided by movement) | Frame rate | 60FPS & 30FPS | 30FPS | - - - -

Company Contact:

• Posted By: Shenzhen Okaf Technology Co., Ltd.

• Phone: 86-755-29680362

• Address: Yuetong Multiple-Use Building, Minle Road, Minzhi Street, New Longhua District, Shenzhen, Guangdong,, Shenzhen , Guangdong , China

• Email:

• Website: https://www.hd-ptzcamera.com

• Business Description: Shenzhen Okaf Technology Co., Ltd was established in 2005 - It is a high-tech enterprise specializing in researching & developing, producing and selling CCTV surveillance products.

  It is one of the most professional CCTV surveillance system developer & manufacturer in China nowadays.
