Ip Sdi Ahd Analog Full Hd Ptz Cameras 720p And 1080p20x Optical Zoom Dual Control - China

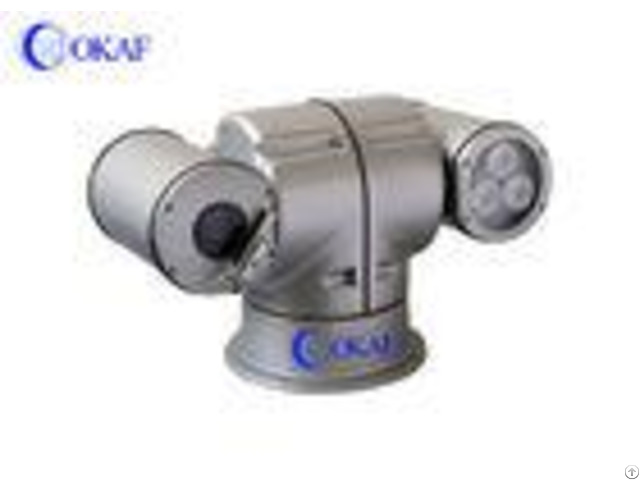

LED Strong Light Full HD PTZ Camera 2MP IP/SDI/AHD/Analog 20X Optical Zoom Camera Product description: 1, Acceptable to a variety signals of PTZ, IP/SDI/AHD/TVI/CVI/Analog .

2, IP PTZ supports IP and analog dual-outputs, dual control via RS485 and RJ45 network port to control PTZ camera 3, Solve the lighting conditions-frees fast target in the dark and search by strong light.

4, It is composed by strong light + infrared lighting, Lighting distance is greater than 80 meters, infrared distance of 50 meters 5, Adopt high-power LED from USA, quality and stability.

6, Accept two method drive of belt drive and worm gears 7, Support coordinates and angles to accept instructions 8, PTZ has a built-in Voltage Regulator Module, protection device for stability and durability.

Parameters: - - - - PTZ Camera Parameters | Pan preset speed | 60/S(manual control 060/S) | Tilt preset speed | 30/S(manual control 030/S) | Pan range | 360 | Tilt range | 9090 | Electric machinery | stepping motor (worm and gear) | Preset positions | 256 Preset positions | Control Way | RS485(IP and SDI PTZ camera support RS485 and RJ45 dual- control protocol) | Baud rate | 2400Bps~19200Bps | Control protocol | Pelco-D/Pelco-P | Chroma | 850nm | Searchlighting Distance | 100m | light power | 10W*3 LED | Audio input/output | Support | Alarm Input/ Output | Support | Operating temperature | 35C~65C | IP Grade | IP66 | Power Supply | DC10.5V~DC16V(6A) | Weight | 7.5KG(net weight) | IP Movement | Model | 20IP | 30IP | Imaging sensor | 1/2.8inch ExmorCMOS | 1/2.8inchExmorCMOS | Effective pixels | 2.1 mega pixels | 3 mega pixels | Lens | 20X optical zoom f=4.7 -94.0mm (18.20.30X optional) | Min.

illumination | 0.095 lUx (F1.6, ICR open) | Frame rate | 25FPS & 30FPS | Double stream | H.

265/H.

264 | SDK Docking | standard ONVIF protocol, support SDK secondary development | SDI/AHD Movement | Model | SDI | AHD | Imaging sensor | 1/2.5inch CMOS | 1/4inch CMOS | Effective pixels | 30X 3 mega pixels (decided by movement) | 36X 2 mega pixels (decided by movement) | Frame rate | 60FPS & 30FPS | 30FPS | - - - -

Company Contact:

• Posted By: Shenzhen Okaf Technology Co., Ltd.

• Phone: 86-755-29680362

• Address: Yuetong Multiple-Use Building, Minle Road, Minzhi Street, New Longhua District, Shenzhen, Guangdong,, Shenzhen , Guangdong , China

• Email:

• Website: https://www.hd-ptzcamera.com

• Business Description: Shenzhen Okaf Technology Co., Ltd was established in 2005 - It is a high-tech enterprise specializing in researching & developing, producing and selling CCTV surveillance products.

  It is one of the most professional CCTV surveillance system developer & manufacturer in China nowadays.
