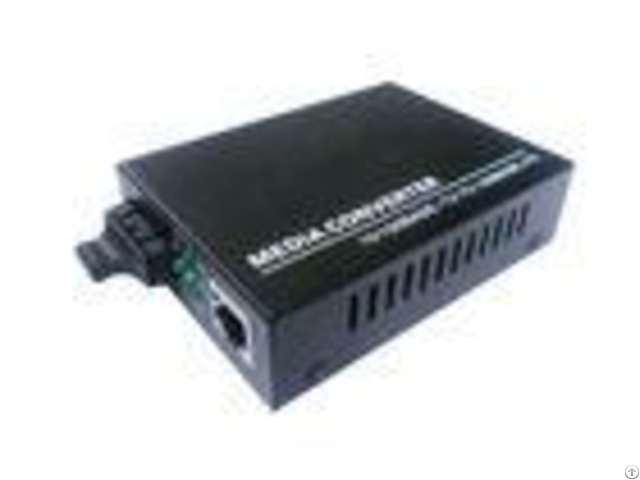

Ce Certification 10m 100m Fiber Optic Media Converter Single Mode 1310nm 20km Sc - China
price: check with company for price
CE Certification 10M / 100M Fiber Optic Media Converter Single Mode 1310nm 20km SC Feature 1.100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion 2 - Auto-MDI/MDIX copper RJ45 port 3.1600byte super data packet transmission 4 - Full duplex-flow control, half duplex-back pressure 5 - Link fault pass through (LFPT) 6 - Full- positioned LEDs to indicate power and network status Specification - - - - Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree | 10/10 0 BASE-T | STP or UTP Category 5/5e/6 cable (Max.
100m) | 100BASE-FX | 50/125umfiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km) | Conversion M ode / D elay T ime | Store-and-Forward < 10us, straight-through<0.9us | Flow control | Full duplex-flow control, Half duplex-back pressure | RJ-45 Port | Auto-MDI/MDIX | Fiber Connector | SC standard, ST/FC optional | Wavelength | 1310/1550nm | Dimensions | 130mm X 86 mm X 26mm | Weight | Net weight : 0.16kg; Gross weight : 0.42kg | Input Voltage | DC-5V AC/100-240V | Power Consumption | <2.5W | MTBF | 50, 000 hours | BER | <1/1000000000 | MAC Address Table | 1K | Buffer Size | 1M | Operating Temperature | 0C~50C | Storage Temperature | -40C~70C | Storage Humidity | 5%~90% non-condescending | - - - - Connection diagram order info - - - - Part No | Description of product | Unit | ND-820SW-20 | 10M/100M bps, Single mode, 1310nm, 0-20KM, SC | | - - - -
Company Contact:
- Phone: 86-755-85292891
- Address: Rooms 1318-20, 13/F, Hollywood Plaza, 610 Nathan Road, Kowloon, Hong Kong., Shenzhen , Guangdong , China
- Email:
Published date: March 21, 2018
- Business Description: Newbridge based on Shenzhen is certified by ISO9001: 2000, we have been founde in 2004 - We have three product lines, and the first line is SMT line (surface Mounting Technology).
there are three sets SMT high-speed device, two sets full automatic screen printer and one sets reflow Soldering in this line.
