Hdcp 1 2 Standard Vga Extender Fiber Optical Transmitter And Receiver 60hz - China

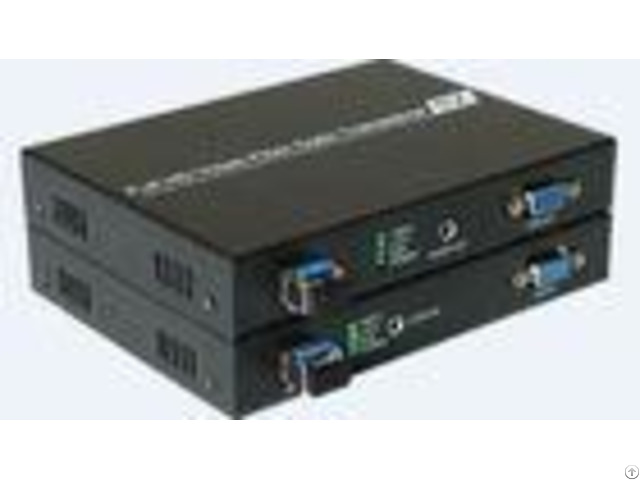

ND-N8110V VGA Optical transmitter and Receiver Over Fiber Overview: The product consists of the transmitter and the receiver, use advanced uncompressed digital HD video and high-speed digital fiber optic transmission technology, you can easily transmit a variety of resolutions of computers, high-definition video sources, HD DVD / DVR and other equipment output of VGA HD signals over long distances to the remote, and with local VGA loop-through, independent analog audio, forward 232, anti-interference ability, ensure signal integrity and stability.

Features: # All-digital, uncompressed, high-definition optical transmission # Compliance with the VGA standard protocol # Support Independent analog audio # Support local VGA loop-through # Support forward R232 communication # Automatic identification and configure various display modes # The highest resolution to 1080P @ 60, and compatible with downward resolution # Single / multi-mode fiber transmission # Built-in ESD protection circuitry, can effectively prevent electrostatic damage # Site installation: easy, plug and play, no need to set # Package Contents: # VGA Transmitter 1 # VGA Receiver 1 # Power Adapter 5V/2A2 - - - - Transmitter interface | Function Description | VGA IN | VVGA signal input port | VGA OUT | VGA signal output port | AUDIO IN | Audio signal input port | OPT OUT | Optical fiber output interface | DC | 5V power input | UART | Serial communication interface | Receiver interface | Function Description | VGA OUT | VGA signal output port | AUDIO OUT | The audio signal output | OPT IN | Optical input interface | DC | 5V power input | UART | Serial communication interface | - - - - - - - - Indicator | VGA Transmitter | VGA Receiver | VIDEO | ON | Video signal | OFF | NO Video signal | LOCK | ON | Lock the video signal | OFF | Unlock the video signal | RUN | ON | The board operating normal | OFF | The board not operating | POWER | ON | The equipment on power | OFF | The equipment not on power | - - - - Specifications - - - - Operating Temperature Range | -5 to +35C | Operating humidity range | 5 to 90 % RH (no condensation) | Input and output video signal | VGA | Support Video Format | 1920*1080/60Hz, 1280*1024/60Hz, 1280*768/60Hz, 1280*720/60Hz, 1024*768/60Hz, 800*600/60Hz, | Transmission distance | 5KM-40KM The default is 5KM | Input and output audio interface | 3.5MM Audio | Support input and output audio formats | 44.1K, 48K, 96K, 176K, 192K | Serial port baud rate | 115200 and following adaptively | Input Power | DC5V | Power Consumption | VGA Transmitter 4W VGA Receiver 4W | Dimensions | Long * Wide * High (mm)120X97.5X25.2 | Package Size | | - - - - Installation 1 - Use the VGA cable connect the VGA input signal to the VGA_IN.

2 - Use the VGA cable connect the VGA output signal to the VGA_OUT 3 - Connect the audio input signal to the AUDIO IN.

4 - Connect the audio output signal to the AUDIO OUT.

5 - Connect the serial to the UART.

6 - Use the LC interface optic fiber connect the OPT IN and OPT OUT.

7 - Power to the device.
