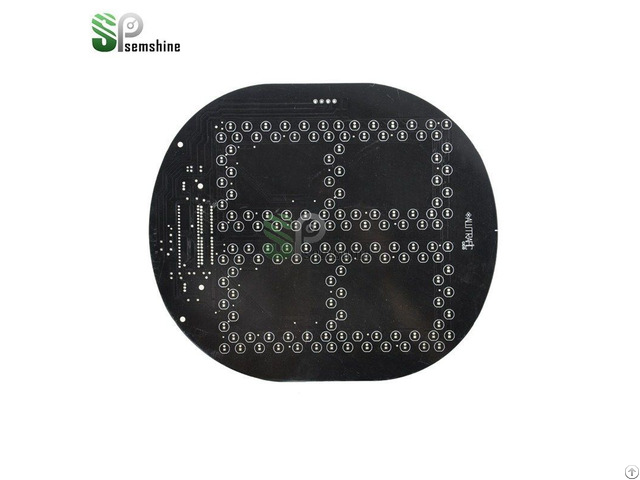

Single Side Aluminum Pcb - Chinaprice: 1.00 Dollar US$
Double-sided aluminum PCB are widely used in various electronic products, and comply with ROHS and REACH specifications
single side aluminum-pcb wholesale
Model Number: aliuminum pcb
Place of Origin: Shenzhen, China
Brand Name: SEMSHINE
Base Material: Aluminum high TG
Copper Thickness: 1oz
Board Thickness: 0.3mm
Hole Size: 0.08mm
Line Width: 2 Mil
Line Spacing: 0.1um(3 Mil)
Surface Finishing: ENIG
Color: Black Solder mask and White silkscreen
ltemAluminum substrate specifications:
Item Unit Specification Test condition
Insulation thickness pm Max Min 200
Solder resistance (288°C) Sec.
Min 600 IPC-TM-650 22.214.171.124
Thermal shock 288eC*10,, /cycle Min 6 Times IPC-TM-650 126.96.36.199
Peel strength (Normal status) Ib/in Min 9 IPC-TM-650 2.4.8
Breakdown Voltage V/mil 750 IPC-TM-650 2.5.6
Volume resistivity (Normal status >E+14) Q • cm >1015 IPC-TM-650 188.8.131.52
Surface resistivity (Normal status >E+12) Q — >1013 IPC-TM-650 184.108.40.206
Dielectric constant IPC-TM-650 1 GHz Normal status 5.16 220.127.116.11
Dissipation Factor IPC-TM-650
1 MHz Normal status 0.0252 18.104.22.168
1 GHz Normal status 0.0164 22.214.171.124
Water absorption % 0.2 IPC-TM-650 126.96.36.199
(measured on insulation layer only) W/m°C 3.0 ASTM-E1461
Flammability 94V-0 Pass IPC-TM-650 2.3.9
Tg °C 150 IPC-TM-650 2.4.24
Td °C 420 TBD (5wt% loss)
MOT (RTI) °C 130 UL 746B
CTI (Comparative Tracking Index) V >600 (PLC=0) UL746E DSR
