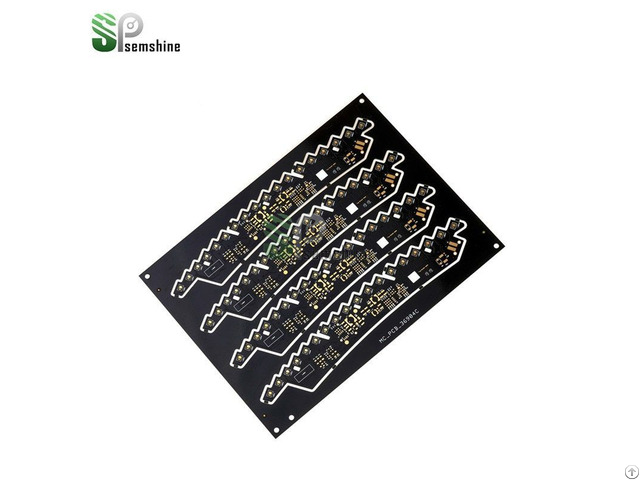

Fr4 Laminate Enig Double Sided Pcb - Chinaprice: 1.00 Dollar US$
1 - Introduction
As a kind of Double-sided Fr4 pcb, it is widely used in Computer and NB, Instruments, Consumer electronics, Automotive electronics etc.
Halogen, antimony and red phosphorous free
Excellent thermal reliability
L Z CTE
fr4 laminate double sided pcb supplier: SEMSHINE
2 - Material: Fr4 Laminate pcb
Test Item Test Method
(IPC-TM-650) Test Condition Unit Specification Typical Value
Stress 24.13.1 Float 288℃/Unetched Sec ≥10 ≥240 Glass Transition
(Tg) 2.4.25 E-2/105 DSC ℃ ≥10 175 CTE/ Z-Axis Expansion 2.4.24 Alpha 1 ppm/℃ ≤60 40 Alpha 2 ≤300 200 50 - 260 ℃ % ≤3.0 2.2 X/Y CTE 2.4.24 40℃ - 125℃ ppm/℃ —— 12/15 T-260 126.96.36.199 TMA min ≥30 ＞60 T-288 188.8.131.52 TMA min ≥15 ＞60 TD(5% weight loss) 184.108.40.206 TGA ℃ ＞340 385 Flammability UL94 E-24/ 23 Rating V-0 V-0
Electrical Surface Resistivity 220.127.116.11 C-96/35/90 MΩ ≥104 3.7*108 Volume Resistivity 18.104.22.168 C-96/35/90 MΩ-cm ≥106 4.3*109 Dielectric Breakdown 2.5.6 D-48/ 50+D0.5/ 23 kV ≥40 ≥45 Dielectric Constant 22.214.171.124 Etched
@ 1 MHz
@ 1 GHz — ≤5.4 4.8 4.6 Loss Tangent 126.96.36.199 Etched
@ 1 MHz
@ 1 GHz — ≤0.035 0.012 0.013 CTI IEC60112 A V —— ＞600 Arc Resistance 2.5.1 D-48/ 50+D-0.5/ 23 Sec ≥60 121
Mechanical Peel Strength (1 oz.
) 2.4.8 125 ℃ N/mm ≥0.70 1.3 Float 288 ℃/ 10 Sec ≥1.05 1.4 After Process Solution ≥0.80 1.1 Flexural Strength 2.4.4 Length Direction N/mm2 ≥415 602 Cross Direction ≥345 534 Moisture Absorption 188.8.131.52 D-24/23 % ≤0.5 0.11
3 - Certification: UL, ROHS, Reach, ISO
4 - Use range: Lighting, Automotive electronic equipment, Power supply, Electronic control, Computer equipment, Communication electronics etc.
5 - What exhibitions have we participated?
New Delhi Exhibition, Moscow Electronic Exhibition etc.
6 - Our Services
1 - Quick response
2 - Reasonable price based on good quality
3 - Provide one-stop service(components, OEM)
4 - Abundant inventory & Habitual material preparation
- Posted By: Shenzhen Semshine Tech Co.,Ltd
- Phone: 13823362183
- Address: Room 413, F Building, No. 9 East District, Shangxue Technology zone, Bantian Street, Longgang, Shenz, Shenzhen , Shenzhen , China
- Website: https://www.shinepcba.com/
Published date: February 9, 2022
- Business Description: Shenzhen Semshine Technology Co., Ltd. is a professional PCB supplier which is specialized in producing printed circuit board especially Alum base PCB since 2006 - As a PCB supplier, Semshine is not only offering a one-stop service as PCB design, PCB production, and PCB assembly, but also taking great advantages on fast delivery time and competitive price with no quality compromise.
There are two factories supporting us to be a better PCB supplier, which one is in charge of 1-4 layers PCB, another taking care of HDI PCB and multilayer PCB.
Our PCBA service also have a good reputation from customer, because we source original components and make careful assembly for each board.
Semshine is located in Shenzhen, China, near HONGKONG, in other words, the shipment is more efficient on time and cost for every customer.
DHL, UPS, FedEx, Air, Sea shipping ways are available choices.
In years of development, Semshine owns more than 5000 sqm plant with over 10000 sqm per month production capability.
We have the ability to manufacture 2-20 layers metal base (Alum, Cu, Iron), high Tg PCB etc.
Recently we focus on Aluminum base PCB, especially our high heat conductive Aluminium PCB which is applied in cooling demand field, such as lighting -- street lights, lawn lights, fluorescent lights, stage lights -- electronic, mechanical, telecommunications, automotive etc.
We acquired ISO9001: 2000, UL and RoHS approval for further development.
Until now, we have built up good reputation among domestic and foreign customers, and our business extends far into Europe, America, Southeast Asia, and the Middle East etc.
Every year, we join in different electronics exhibitions as products promotion such as HK Fair, Productronica Munich，Productronica IndiaINTERNEPCON JAPAN Moscow Crocup fair etc.
You are welcome to visit our factory, we are looking forward to establishing a long-term cooperative relationship with you.
