Thruhole Hi Sens Low Signal Relays G5v 1 Dc5 - India
price: 1.00 Dollar US$

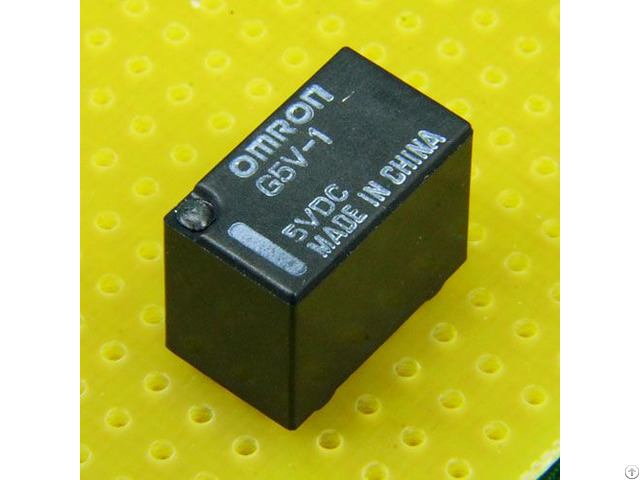

1A 5V PCB ThruHole Hi-Sens Low Signal Relays - G5V-1-DC5
FEATURES: -
• High sensitivity: 150 mW nominal power consumption.
• Small size at 10 H x 7.5 W x 12.5 L mm.
• Switches from 1 mA to 1 A.
• Conforms to FCC part 68 requirements for coil to contacts.
• Fully-sealed construction.
• Ideal for use in telecommunications, security, and computer/peripheral equipment.
• RoHS Compliant.
DESCRIPTION: -
Manufacturer: Omron
Product Category: Low Signal Relays - PCB
RoHS: RoHS Compliant Details
Product: Low Profile Relays
Type: Miniature
Coil Voltage: 5 VDC
Contact Form: SPDT (1 Form C)
Contact Rating: 500 mA at 125 VAC, 1 A at 24 VDC
Contact Current Rating: 2 A
Maximum Switching Current: 1 A
Coil Current: 30 mA
Coil Type: Non-Latching
Power Consumption: 150 mW
Brand: Omron Electronics
Coil Resistance: 167 Ohms
Contact Material: Silver (Ag)
Contact Termination: Solder Pin
Mounting Style: Through Hole
Packaging: Tube
Qualification: Commercial
POPULAR PRODUCTS: -
24 VDC Low Signal Relays - PCB, Dual Coil Latching 2 A Low Signal Relays - PCB, Dual Coil Latching 3 VDC Low Signal Relays - PCB, 1.5 VDC 35 mW Low Signal Relays - PCB, 5 VDC DPDT (2 Form C) Low Signal Relays Low Signal Relays - PCB, tycoelectronics/images/pr -v23079--p2 - jpg Low Signal Relays - PCB
Company Contact:
- Posted By: e control devices
- Phone: 9810618342
- Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad , haryana , India
- Email:
Published date: December 9, 2016 - Modified date: December 9, 2016
