General Purpose Relays 10a 12vdc G5la 14 Dc12 - India
price: 1.00 Dollar US$

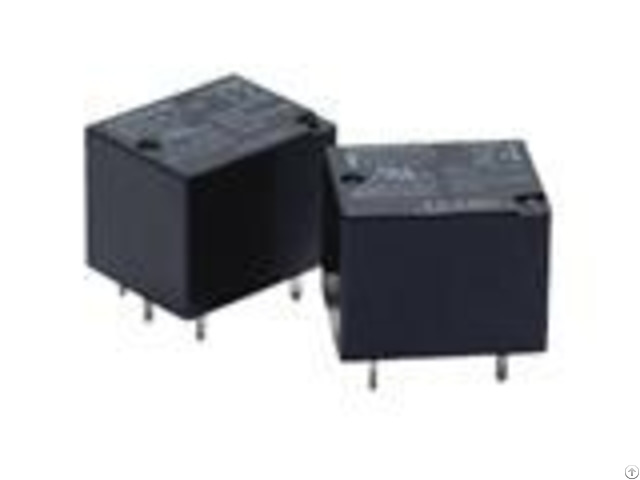

General Purpose Relays SPDT Sealed 10A 12VDC : - G5LA-14-DC12
FEATURES: -
• Economical cube relay with universal terminal footprint
• Conforms to VDE0435
• UL recognized/CSA certified.
• High switching power: 10A @ 250VAC
• Withstands impulse of up to 4, 500V
• Coil power consumption: 360mW
• UL Class F coil insulation type also available
• Tracking resistance: CTI>250
APPLICATION: -
• Home appliance
• OA equipments
• Vending machines, etc.
DESCRIPTION: -
Product Category: General Purpose Relays
Manufacturer: Omron
RoHS: RoHS Compliant Details
Coil Voltage: 12 VDC
Contact Form: SPDT (1 Form C)
Contact Current Rating: 5 A
Mounting Style: Through Hole
Coil Resistance: 400 Ohms
Coil Current: 30 mA
Contact Material: Silver Tin Oxide (AgSnO)
Brand: Omron Electronics
Height: 15.6 mm
Length: 19.8 mm
Power Consumption: 360 mW
Series: G5LA
Factory Pack Quantity: 100
Width: 15.6 mm
Part # Aliases: 659370 G5LA1412DC G5LA6017E
