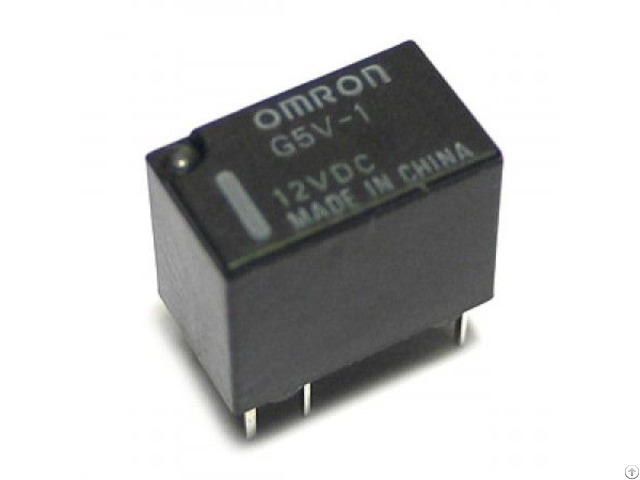

1A 12V SPDT PCB ThruHole Hi-Sens Low Signal Relays - G5V-1-DC12V

FEATURES: -

• General-purpose DIL terminal layout.

• Wide switching power of 10 µA to 2 A.

• Fully-sealed type Relays standardized with bifurcated crossbar contacts.

Highly

reliable in addition to its high environment resistance.

• Conforms to FCC Part 68 (impulse withstand voltage of 1, 500 V for 10 x 160 µs

between coil and contacts and between contacts of the same polarity).

• High dielectric strength at 1, 000 VAC between coil and contacts, and 750 VAC

between contacts of the same polarity.

• UL and CSA standard approved.

APPLICATION: -

• Telecommunication equipment

• Security equipment

DESCRIPTION: -

Manufacturer: Omron

Product Category: Low Signal Relays - PCB

RoHS: RoHS Compliant

Brand: Omron Electronics

Product: Low Profile Relays

Type: Miniature

Contact Form: SPDT (1 Form C)

Contact Current Rating: 2 A

Coil Voltage: 12 V

Maximum Switching Current: 1 A

Coil Current: 12.5 mA

Coil Type: Non-Latching

Power Consumption: 150 mW

Contact Rating: 0.5 A at 125 VAC, 1 A at 24 VDC

Contact Termination: Solder Pin

Mounting Style: Through Hole

Series: G5V-1

Factory Pack Quantity: 25
