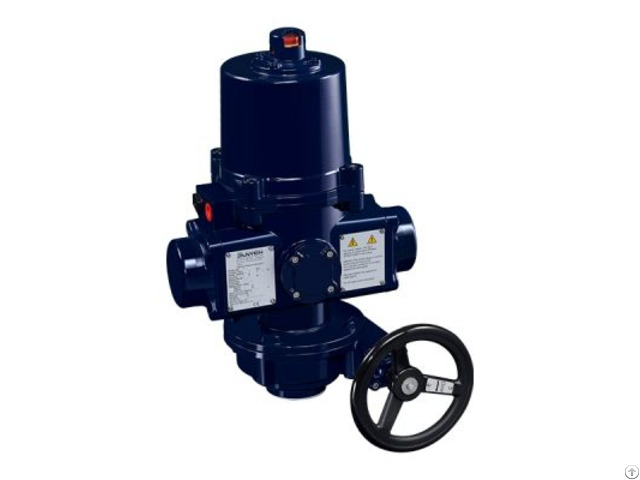

Spring Return Fail Safe Electric Actuators S1300 - Taiwan
price: contact company for price
Description:
Max Torque: 130 N.
m/1150 lb.
in
Standard Weight: 57 kg/126 lb
W / Manual Override Weight: 74 kg/163 lb
Mounting Flange(ISO 5211): F10 Feature:
Standard Capability :
Duty cycle rating：50% (Conform to IEC standard).
ON/OFF control.
Ambient Temperature Range :
Temperature：-30℃ to +65℃/-22℉ to +149℉
Humidity：30% to 95%
Enclosure :
IP67, NEMA 4X：Water-proof and dust-proof enclosure.
Material：Dry powder coating aluminum alloy.
Lubrication :
Gear trains have been already lubricated sufficiently with anti-high temperature lubricant at the factory.
Position Indicator :
All models have continuous mechanism position indicator on the top of actuator cover.
Various voltage :
AC/DC 24V
AC 110/220V, 1-Phase
AC 220/380/440V, 3-Phase
Conduit entrance :
Standard：1/2"NPT
Optional：3/4"NPT or M20
Enclosure :
Nylon coating
E.D. coating
Epoxy coating
Company Contact:
- Posted By: Sun Yeh Electrical Ind. Co., Ltd.
- Phone: 886-4-26985666
- Address: No. 68, Lane 854, Sec. 1, Shatien Road., Dadu Dist., , Taichung City, Taiwan , Taiwan
- Email:
- Website: https://www.sunyeh.com
Published date: August 6, 2019
- Business Description: Established in 1986, Sun Yeh Electrical Ind.
Co., Ltd. offers Electric and Valve Actuator, Electric Valve Actuators, quarter-turn actuator, fail-safe spring return actuator and linear actuator widely applied to the control on industry, water treatment, air conditioning, etc.
