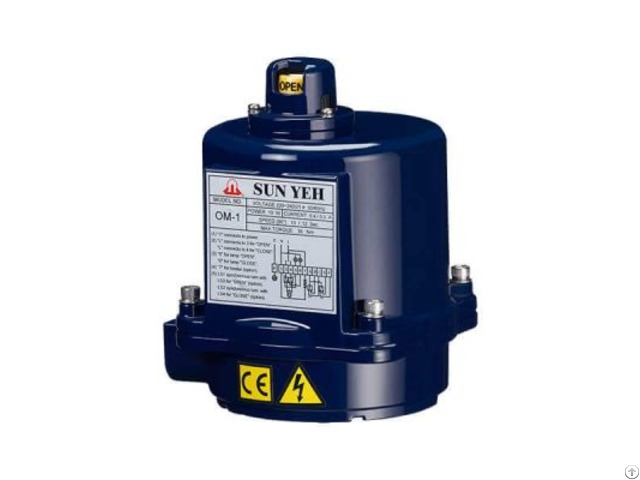

Quarter Turn Electric Actuators Om 1 - Taiwan
price: contact company for price
Description:
Power: 10W
Max Torque: 35 N‧m/310 in‧lb
Speed: 12 Sec/90°
Weight: 2 kg/4.4 lb
Manual Override: Lever
Mounting Flange(ISO 5211): F03/F05 Feature:
Enclosure :
IP67, NEMA 4X : Waterproof and dustproof enclosure.
Aluminum alloy, polyester powder coated.
Motor :
Insulation class F
Optional : Insulation class H
Built-in thermal protection prevents motor burnout.
AC motor：125±5℃/257±9
DC motor：90±5℃/194±9
000000000
Duty Cycle :
OM-1：30％ duty cycle
Service Condition :
Ambient temperature：-30℃ to +65℃ / -22℉ to +149℉
The humidity：30％ to 95％
Position Indicator :
All models have continuous mechanism position indicator on the top of actuator cover.
Gear Train :
Gear trains have been already lubricated sufficiently with anti-high temperature lubricant at the factory.
Conduit entries :
Standard : 1/2" PS
Optional : 1/2"PF, 1/2”NPT or M20
Various voltage :
AC/DC 12V
AC/DC 24V
AC 110/220V, 1-Phase
Optional Coating:
Nylon coating
E.D. coating
Epoxy coating
Communication Protocols :
Modbus RTU RS485
Working angle :
Standard : 0-90°
Optional : 91-270°
Company Contact:
- Posted By: Sun Yeh Electrical Ind. Co., Ltd.
- Phone: 886-4-26985666
- Address: No. 68, Lane 854, Sec. 1, Shatien Road., Dadu Dist., , Taichung City, Taiwan , Taiwan
- Email:
- Website: https://www.sunyeh.com
Published date: August 6, 2019
- Business Description: Established in 1986, Sun Yeh Electrical Ind.
Co., Ltd. offers Electric and Valve Actuator, Electric Valve Actuators, quarter-turn actuator, fail-safe spring return actuator and linear actuator widely applied to the control on industry, water treatment, air conditioning, etc.
