Spd102sahyb Differential Pressure Sensor With Analogue Output - China
price: check with company for price

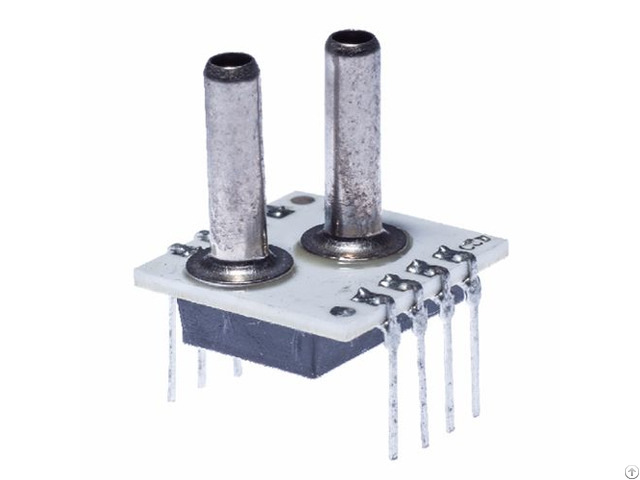

SPD102SAhyb Pressure Sensor
/
SPECIAL LOW PRESSURE RANGE DIFFERENTIAL SENSOR WITH ANALOGUE OUTPUT (SINGLE VERSION)
/
This Smartec differential pressure sensor has an amplified analogue output.
The sensor is compensated for offset, sensitivity, temperature drift and nonlinearity.
The sensor has a range of 0.15 PSI FS and the output is ratiometric to the power supply voltage.
Other pressure ranges on request ( 0.3 – 100 PSI).
When no pressure is applied output Voltage is minimal; single type.
/
SPD102SAhyb Differential Pressure Sensor Electrical Characteristics
Supply Voltage: 4.75~5.25V
Supply Current: 2.5mA
Pressure range: 0~0.15psi
Linearity: ±0.5%FS
Accuracy: +2.2%FS
Operating Temp range: -10~70°C
Storage temperature: -40~125°C
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: August 9, 2017
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
