Smt Contacts 3 5mm Audio Jack Port - China

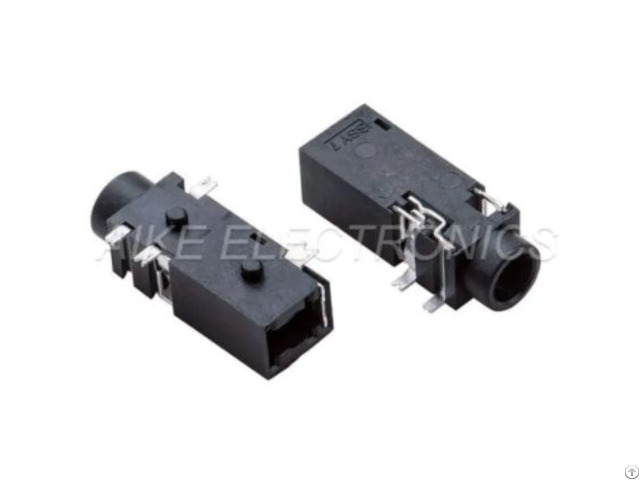

3.5mm Audio Jack Port

Belongs to the connector field, Audio Jack is applied to Audio signal with different designs.

The Audio jack connector for laptop computers, commonly known as the headphone socket, is the other end that fits into the earplugs.

(can also be used in mobile phones, tablets, etc.

) reliable design, proven and applied

Type 3.5mm Audio Jack( Phone Jack), Receptable, SMT contacts, with 2 position hosts

Contact 3.5mm Plug

Materials For housing can be PBT, LCP, PA9Tand so on

For Contact normally can be Copper.

Colour Black or Customized Color

Plating For Contact, Au, Ni, and Tin Plating

Plating Thickness For Contact, 1U', 3U'5U'15U', 30U' or Higher

It depands on custoer request

Rating DC 30V 0.5A

Contact resistance ≤50 mΩ

Insulation resistance ≥100MΩ(DC250V)

Withstand voltage 500VAC

Insertion and Extraction force 3-25N

Life test 5, 000 cycles

Application Computer, Mobile, Earphones and other equipment

Package Normally Tape & Reel Package Or Customized Package

Delivery Time Usually 25-35 days after receiving the 30% deposit

Payment terms TT, L/C, DP or Negotiable

Note This part is only one sample for this serious products, we can change the shell, the legs and even housing to make lots of similar parts.

We are so able to produce other standard as per the clients' requirements.

Just let us know.

Audio Jack Connectors

The audio jack is an industry standard connector that has many potential uses beyond providing a basic audio connection.

2.5 mm or 3.5 mm audio jacks are common in smartphones, media players, hi-fi devices and many other devices.

It can be used not only for easy connection of external speakers or headphones, but also for smartphone selfie sticks equipped with a camera shutter release button.

What types of audio connectors are there?

1 - Analog audio interface

TRS interface (large / small three-core), RCA Lotus head, XLR Canon port, etc.

2 - Digital audio interface

AES / EBU interface, S / PDIF interface, coaxial interface, RCA coaxial interface and BNC coaxial interface, optical interface.
