Hdmi Connector 19pin Dip Type A - China

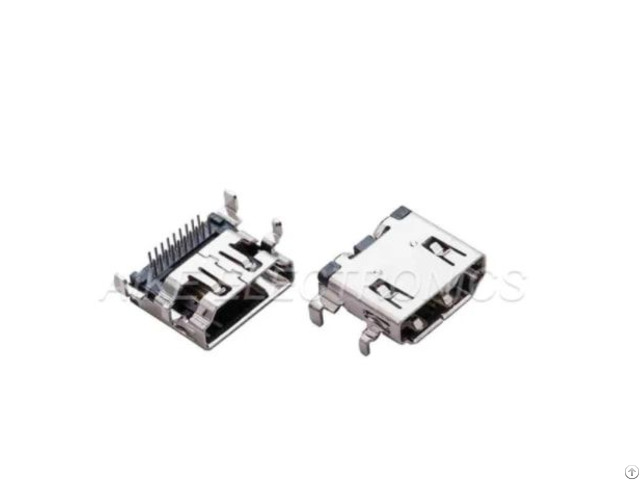

The 19-pin HDMI Type A is a standard HDMI connector with 19 pins to carry it, and it is suitable for most HDTVs.

19pin HDMI connectors handle high bandwidth to support high-definition video and multi-channel digital in a single cable.

This HDMI connector series is fully shielded for ESD protection and is RoHS compliant.

Applications include digital televisions, set-top boxes, and DVD players.

Meets HDMI 1.3 specification.

19 Pin HDMI Type A Technical Parameters

Type HDMI Connector 19PIN DIP type A with through hole legs, sink PCB Board Type

Contact No.

19PIN

Materials For housing can be PBT, LCP, PA6T, PA9T and so on

For shell can be SPCC, Copper and so on.

Both are depands on customer request

Colour Normally Black or Customized Color

Plating For Shell, Ni and Tin Plating

For Contact, Au, Ni, and Tin Plating

Plating Thickness For Shell, 50U', 100U' or Higher

For Contact, 1U', 3U'5U'15U', 30U' or Higher

Both are depands on custoer request

Machenical Contact current Rating: 0.50A Min.

Dielectric Withstanding Voltage: AC 500V/minute Insulation resistance: 100M ohms Min Contact Resistance: 10m ohm

Electronical Mating Force: 44.1N Max Unmating Force: 9.8N Min.

; 39.2N Max.

Application Mainboard, TV, Computer, Rejector, Game machine, smart home and Industrial etc.

Package Tape Reel Or Customized Package

Delivery Time Usually 25-35 days after receiving the 30% deposit

Payment terms TT, L/C, DP or Negotiable

This part is only one sample for this series products, we can change the shell, the legs and even housing to make lots of similar parts.

We are so able to produce other standard as per the clients' requirements.

Just let us know.

19-PIN HDMI connector applications?

1 - Stage lighting, dimmer racks, light bars

2 - Stage lighting control connections

3 - Lifters and controllers

4 - Other stage equipment

5 - Any other application that requires a multi-pole power connector.

How to assemble the 19 pin hdmi type a connector?

Multi-pin connectors can carry six separate circuits at supply voltage without the need for a common neutral or ground connection.

Unlike other connectors, all circuits are independent, so they can be located on different devices or phases.
