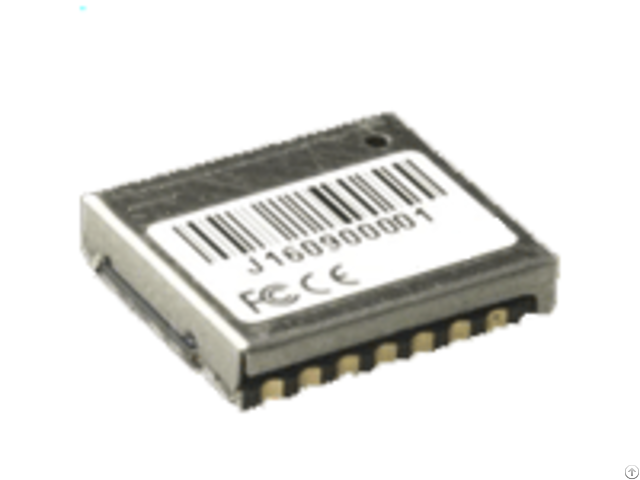

  • Sirf V Gps Glonass Module Ct G153 - Taiwan

    price: contact company for price

    The Ct-G153 utilized SiRFstarV ™ and features Quad-GNSS for tracking GPS, GLONASS, BDS and Galileo satellites.

    The product family delivers highly accurate continuous location, advanced power management and high interference immunity.

    These continue to push the envelope of performance in sensitivity, TTFF and urban canyon availability and accuracy.

    With a built-in DSP and extremely low power consumption, the family can get fast location fixes for geo-tagging images or videos, asset tracking and wearable applications.

    Performance

    * Quad-GNSS : GPS and GLONASS, Galileo and BDS with future firmware update.

    Improving availability and accuracy of position solutions in urban canyon environments.

    * GPS, GLONASS, Galileo, BDS and SBAS reception for high GNSS availability and accuracy

    * High sensitivity navigation engine (PVT) tracks as low as GPS : -165 dBm GLONASS : -161 dBm

    * 52 track verification channels

    * SBAS (WAAS, EGNOS, QZSS, MSAS, GAGAN)

    * Active Jammer Remover, removes in-band jammers up to 80 dB-Hz

    * Tracks up to 8 CW jammers

    * Multimode A-GPS (Autonomous, MS-Based, and MS-Assisted), need operator support.

    * Embedded CGEE / SGEE (With back-end server support) speed up TTFF a lot and makes cold start time to be around 20+ seconds.

    * SiRFGeoRecovTM Reverse EE makes positioning process being done under power saving mode.

    * Reacquisition Time : 0.1 second

    * SiRFGeoRecovTM Reverse EE makes positioning process being done under power saving mode.

    Hardware and Software

    * Based on the high performance features of SiRFstarV™ low power single core logic.

    * Adaptive micropower controller

    * Only 50 to 500μA maintains hot start capability (core logic)

    * < 10mW required for TricklePower™ mode

    * RoHS compliant (lead-free)

    * SMT pads allow fully automatic assembly processes equipment and reflow soldering

    * Advanced navigation features

    * Smart sensor supported by I²C interface

    * External interrupt input for context change detection Advantages

    * Built-in LNA.

    * Built-in internal ROM and based on Firmware 5.5 - X

    * It can remove in-band jammer up to 80db-Hz and track up to 8CW jammers, so the module can prevent GPS signal interference when design-in the electrical device with noisy electrical signal interferences such as laptop, mobile phone, DSC, etc.

    * Maintain tracking sensitivity as low as GPS @ -165dBm, GLONASS @ -161dBm, even without network assistance.

    (SiRFstar III has only -159dBm sensitivity)

    * Support SiRFaware™ technology

    * Support adaptive“Micro Power Controller”power management mode.

    * < 10mW TricklePower™, so user can leave power on all day instead of power off.

    * Suitable for battery drive devices that need lower power consumption application

    * Ideal for high volume mass production(Taping reel package)

    * Cost saving through elimination of RF and board to board digital connectors

    * Flexible and cost effective hardware design for different applications

    * Embed CGEE (Client Generated Extended Ephemeris) that can capture ephemeris data from satellites locally and predicts ephemeris up to 3 days.

    So if the module was off within 3 days, it could complete positioning process with limited time just like hot start.


    Company Contact:


    • Phone: +886-2-8221-6389

    • Address: 7F-2, No.1213, Zhongzheng Rd., Zhonghe Dist.,, New Taipei City 235, Taiwan

    • Email: Email


    Published date: August 14, 2019

    • Business Description: Connectec is well respected in the precision GPS industry, offering a complete line of GPS receivers and Bluetooth communication products.

      To fully support both domestic and international customers.

      Established in 2002 in Taiwan by a number of professionals and experts in Communications and GPS (Global Positioning System) industries.

      We focus and specialize in manufacturing small, lightweight and handy electronic products in applications of GPS and Bluetooth.

      Our aim is to enrich peoples life with more conveniences, styles, innovation, safety and enjoyment.

      Our products:

      GPS/GLONASS module, GPS Engine Board, NB-IoT Module, GSM/3G/4G Module, GPS / GSM Antenna, GPS Mouse ,GPS Devices, GPS Systems, GPS Receiver, car tracking, AVL, Security system, GPS/GNSS antenna, GSM/3G/4G antenna, wifi antenna, RF Cable, RF Connector, OEM/ODM
