High Precision Rtk Gnss Module - Taiwan

The RTK GNSS Module is based on high performance GNSS engine with integrated Real Time Kinematic (RTK) technology.

RTK GNSS Module provides GNSS position with sub-decimeter accuracy using phase measurements of GPS and GLONASS signals.

Integrated RTK technology introduces the concept of differential positioning of moving GNSS module with few cm-level accuracy - "Rover" (RTK GNSS Module) relative to the fixed GNSS module - "Reference station" (RTK GNSS Module or data from high-precision network).

The Reference station sends RTCM corrections to the Rover via a communication link (Wi-Fi, Cellular, UHF Radio) enabling the Rover to output its position relative to the Reference station down to centimeter-level precision.

RTK GNSS Module is ideal for those high precision applications where customer doesn't need to use excess functions of geodetic-class equipment for which he has to pay, such as: Precision Agriculture, UAV, Unmanned vehicles, Machine control, Monitoring systems of geodynamic processes.

Communication with the module is accomplished through a dual serial interface (DUART) that supports GSN binary, NMEA 0183 v4.10 and RTCM v3.2 data protocols.

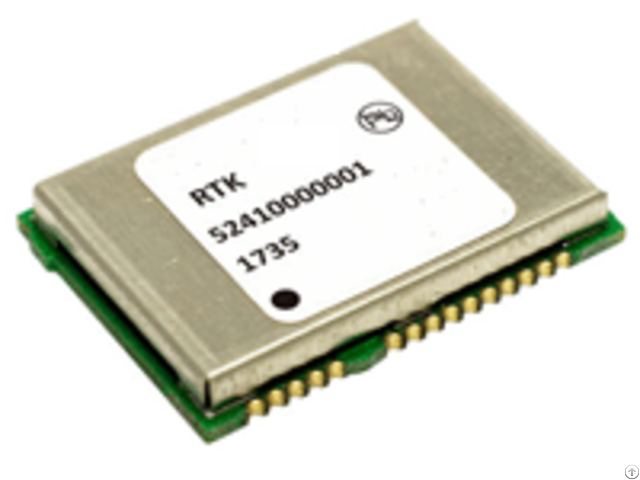

Modules are offered in 22.1x15.9 mm 30-pad LCC package.

Integrated RTK technology and RTK GNSS module designed under support of Skolkovo foundation.

Key Features

* Integrated Real Time Kinematics (RTK) Engine

* Configurable operating modes: Reference station or Rover

* Compact, energy- and cost-efficient RTK module

* 1PPS output for precise timing applications

* Binary and NMEA data outputs

* RTCM v3.2 data input

* RTK positioning update rate up to 5 Hz ; Raw data　up to 10Hz

* Position accuracy : Standalone 2.5 m CEP ; SBAS 2.0 m CEP ; RTK 0.02 m+1 ppm RMS

* Dimension : 22.1 x 15.9 x 2.8mm
