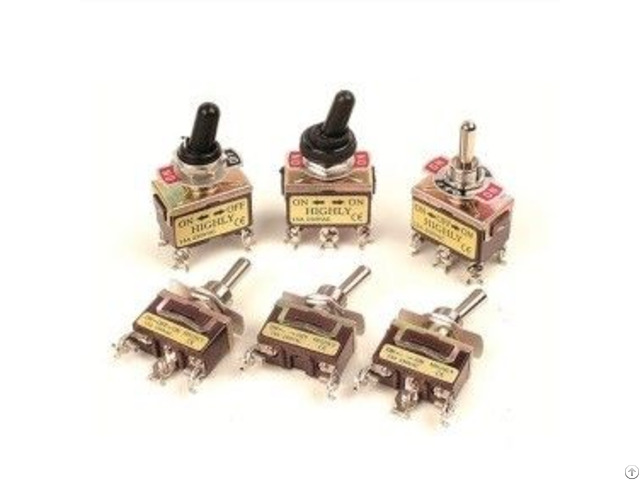

Toggle Switch T Series - Taiwan

Feature:

1 - Several actuator type options.

2 - Easy to identify by colorful actuator cover options.

3 - Push button available.

4 - UL approval.

Specifications:

HIGHLY Toggle switch pass UL, 3C approval, and other safety regulations certification, add button function.

Several handles, color waterproof cover, marking plastic cover option for choice.

Mainly used in automobiles, ship equipment, network communication, industrial instruments, medical equipment, etc.

1 - Item: Standard

2 - Rating: 10A 250VAC / 15A 125VAC / 15A 250VAC / 20A 125VAC / UL61058

3 - Contact Resistance: 25mΩ max.

(initial)

4 - Dielectric Strength: AC 1000V (50/60 Hz for 1 minute)

5 - Insulation Resistance: 100MΩ min.

(at 500VDC)

6 - Electrically Life: 30, 000 Cycle min

7 - Mechanically Life: 100, 000 Cycle min
