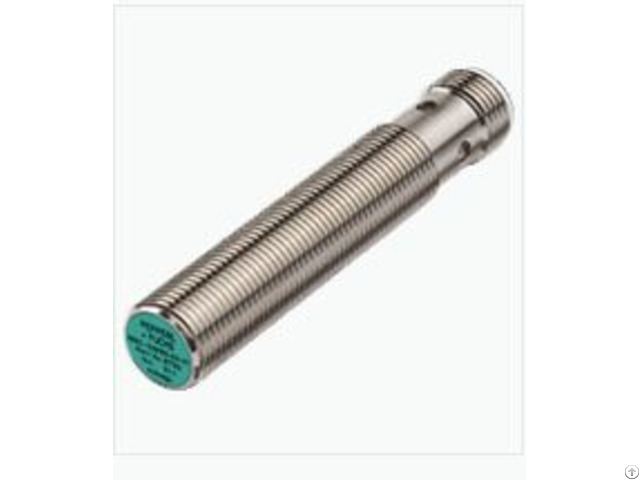

P F Inductive Sensor Nbb2 12gm50 E2 V1 - Germany
price: 54.00 Dollar US$
Switching element function PNP NO
Rated operating distance 2 mm
Installation flush
Output polarity DC
Assured operating distance 0 .
1.62 mm ( -25 .
70 °C (-13 .
158 °F) )
0 .
1.52 mm ( -40 .
-25 °C (-40 .
-13 °F) )
Reduction factor rAl 0.3
Reduction factor rCu 0.2
Reduction factor r304 0.7
Nominal ratings
Operating voltage 10 .
30 V
Switching frequency 0 .
1500 Hz
Reverse polarity protection reverse polarity protected
Short-circuit protection pulsing
Voltage drop ≤ 3 V
Operating current 0 .
200 mA
Off-state current 0 .
0.5 mA typ.
0.1 µA at 25 °C
No-load supply current ≤ 17 mA
Switching state indicator Multihole-LED, yellow
Company Contact:
- Posted By: Ralph Messring GmbH
- Phone: 0611 988 17088
- Address: Sonnenberger Strasse 52, Darmstadt , Wiesbaden , Germany
- Email:
- Website: http://www.ralphmessring.de
Published date: September 28, 2016
- Business Description: Our competitive brands are:
E+H, VEGA, MTL, P+F, KOBOLD, GEMU, FOXBORO(ECKARDT), GESTRA, BALLUFF, R.
STAHL, ROSEMOUNT, ControlAir, SIEMENS.
Ralph Messring GmbH specializes in global sales and distribution of industrial equipment and supplies, our products mainly focus on industrial automation and process instrumentation, e.
g pressure and temperature measurement, flow devices and automation controls components, oilfield equipment, safety products, industrial consumables and etc.
Our goal is to provide our customers with the best products and solution services, at rapid time offering reasonable and competitive price, rapid delivery and convenient order processing.
We have many reliable European Manufacturers as our partners and backup force to serve you the products you know and trust, and we have hundreds of customers at hand generate everyday large purchase demands.
What you only need is to give us a chance to serve you!
