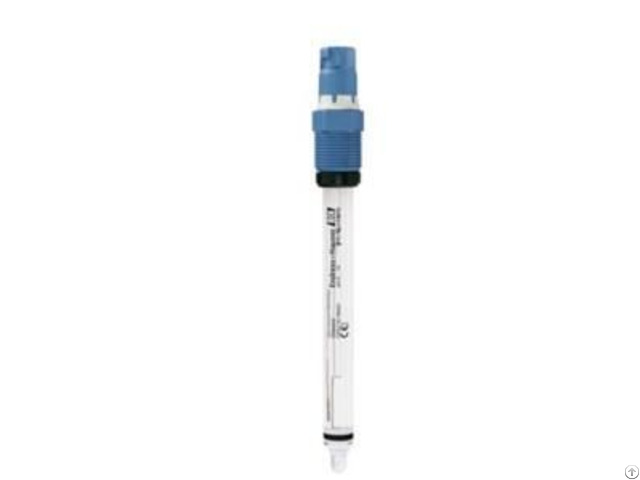

Digital Ph Sensor Orbisint Cps11d 7bt2g - Germany

Measuring Principle Glass electrode

Application Standard applications in process and the environment.

Long-term monitoring, processes with little change.

Characteristic Very robust, heavy-duty version / high pressure, integrated potential matching, flat membrane available.

Measurement range pH 0-14

Measuring principle Gel compact electrode with PTFE ring-diaphragm.

Design - all shaft lengths with temperature sensor

- advanced gel technology.

- With dirt-repellent PTFE diaphragm.

Material Glass / PTFE

Dimension Diameter: 12 mm (0.46 inch) shaft length: 120, 225, 360 and 425 mm

(4.68, 8.77, 14.04 and 16, 57 inch)

Process temperature max.

135°C (274°F)

Process pressure max.

16 bar (230 psi)

temperature sensor optional with integrated Pt100 or Pt1000

Ex certification Simple operational equipment, no certification necessary.

Connection TOP68 connection head

Ingres protection IP 68

Additional Certifications Biocompatibility validated acc.

to ISO 10993-5 USP (current version).

TÜV certificate for pressure resistance 16 bar, min.

triple overpressure safety.
