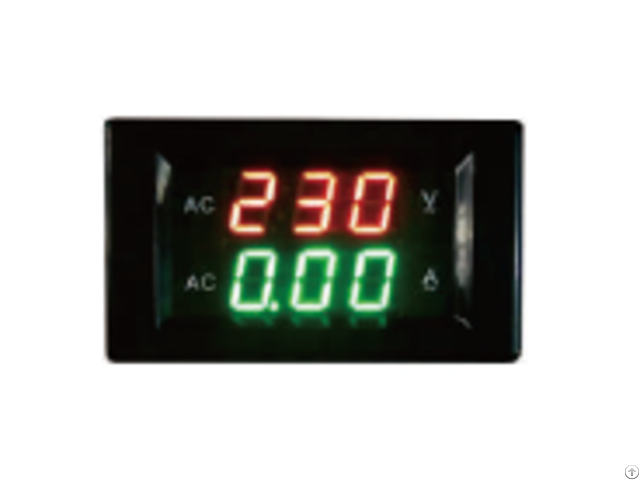

Mva Mini Panel Meter Dc Ac Measurement - China

Main Features·Max measurement 100A & 600V(AC) / 500A

& 600V (DC)

·Isolated / non-isolated power supply

optional

·0.39" large character LED screen, Different

color display current and voltage

·Less than 20amp do no need external

shunts (DC)

·Auxiliary power with polarity protection

·50A type can choose hall CT on-board type

(AC)Technical characteristics

Ordering Information

Please provide following parameter to Blue Jay

Sales Team before place your order:

1 - Input voltage range

2 - Input current range

3 - AC or DC metering

4 - Isolated or Non-Isolated

MVA

Mini panel meter

DC/AC measurement

P-31 P-32

BLUE JAY BLUE JAY

COM

V+

A+

COM AUX

V+

A+

AUX

AC measurement type

DC measurement type

D

CT type D size

AC10A 11mm

AC30A 11mm

AC50A 15mm

AC100A 15mm

AC200A 24mm

AC500A 28mm

Current

Calibration

Voltage

Calibration

Voltage

Sampling

Current

Sampling

L

N

LED screen

Current

Calibration

Voltage

Calibration

Voltage

Sampling

Current

Sampling

Load AC input

L

N

LCD screen

AC type sampling:

Voltage

LED: 60~300V / 130~500V

LCD: 80~300V / 200~500V

Current

LED: 10A / 50A / 100A/ 200A/ 500A

LCD: 0~50A / 0~99.9A

DC type s ampling:

Voltage

3 wire type: 3.5~30V / 4.5~100V

5 wire type: 0~100 / 300 / 600V

Current

999mA / 3A / 5A / 10A / 20A (shunt inside)

50A / 100A (need extenal shunt)

Non-isolated 3.5~30VDC

Isolated 8~18VDC

Other:

IP protect 40

Accuracy:

Measurement 1.0%

Resolution 0.01 ~ 1

Ambient temperature:

Operating -10~65C, 20 ~ 80%RH ; No condensing

Dimens ion:

Appearance size 70×40×30 mm

Cut out size 68*38mm
