MTX105P

Bidirectional battery

status detect

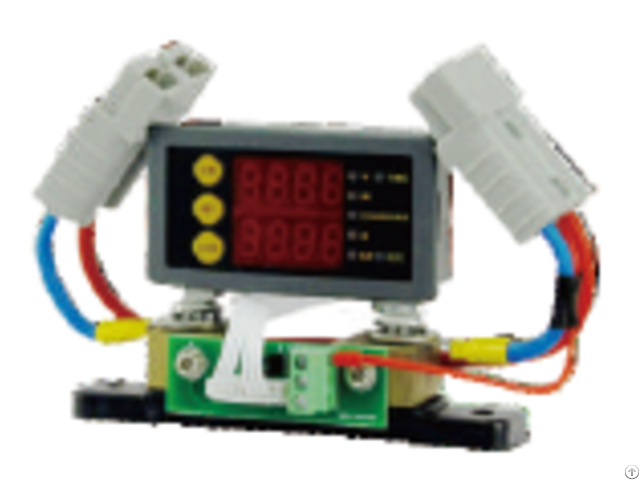

MTX-105P is advanced battery monitor with

dual-side metering function, do not need

change the wiring in charging/discharging

process.

have external connection board, can

work with different range current shunt, and

easy wiring connection.

Mainly used for

monitor the 12V/24V/48V solar system

battery working condition.

Same compact size as previous generation, MTX-105P show volt, amp, power, charge

capacity, running time data, add battery type

correction factor K, SOC(scale of charging)

function, help user known the detail

information of their battery.

·Dual-side metering, can show system charging

/ discharging current data.

·With two line LED display, show volt (V), amp

(A), power (W), amp-hours (AH), running hours

(H), battery capacity (%).

·Protect your batteries against deep discharge

·With on-line calibration function, the user can

calibrate the voltage and current values easily.

·Use external shunt for amp data sampling, support up to 500A circuit measurement.

·User can free to set the measurement battery

capacity, can used in variety types of battery

systems.

Technical characteristics

Optional accessories

12V~36VDC in 2 wire connection;

10V~140VDC in 3 wire connection;

Current sampling 0~500A adjustable

Electrical parameters

Display type 7 segment 4 digits Red LED

Sampling rate 5 times per second

Accuracy Volt ± 1% + 2byte / Amp ± 2% + 5byte

Resolution 0.01V, 0.01A, 0.01W, 0.01Ah, 0.01H

Operation Temperature -10~50

Storage Temperature -20~60

Operation Humidity 0~90RH

Dimensions 79mm×43mm×25mm

Mounting size 76.5mm×39.2mm

Weight 80g

MTX105P*1

10cm connection wire*1
