Industrial Poe Pt Pse106gw - China

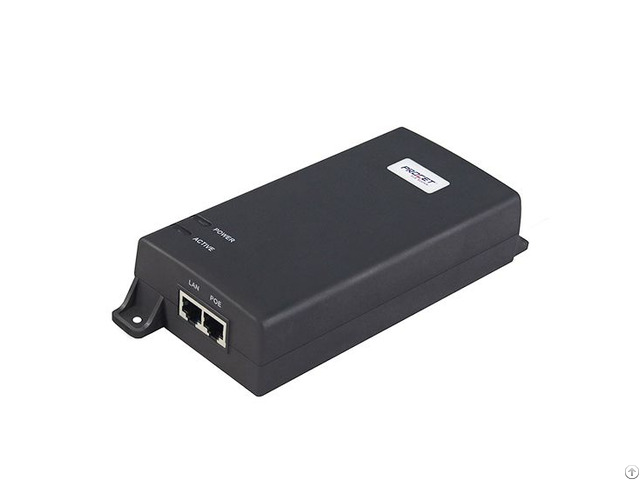

PT-PSE106GW is a single port midspan Injector with 4 Pair PoE up to 60 watts of power at 55 VDC at 1.1 amp.

Household PoE Injector

Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals.

It is also compatible and safe to use with any IEEE802.3af/at compliant terminals.

It supports 10/100/1000Mbps of data rates.

Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

China PoE Injector for camera

Enclosed in an IP40 plastic case, designed for indoor use.

It operates with input voltage of 100-240 Vac, 50 or 60 Hz.

The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

Can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

China Lighting Protection POE Specifications

Parameter Description

Key Features Part Number PT-PSE106GW

Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*1

Regulatory Compliance IEEE802.3af/at/bt

RoHS Compliance

WEEE Compliance

Pass Through Data Rates 10/100/1000 Mbps

Output Pin Assignment and Polarity:

4/5 (+), 7/8 () & 3/6(+), 1/2(-)

Output Power Voltage: 55Vdc

Output Power Current: 1100mA

User Port Power: 60W Guaranteen

Input AC Input Voltage: 100 to 240 Vac

AC Input Current: 1.5A

Frequency: 47 to 63Hz (50/60Hz Typ.

)

Working Environment Operating Temperature: 0℃to 40℃

Operating Humidity: 20% to 80%, non-condensation

Storage Temperature: -20℃to 70℃

Storage Humidity: 10% to 90%, non-condensation

Operating Altitude: up to 5000meters

AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV

Line-Line 1.2/50us (8/20us): 1KV

Mechanical Characteristics Case: Metal

Color: Black

Mounting: Wall-mounted

IP Rated: IP40

Connectors: Shielded RJ-45*2

Size: 193mmX 85mmX 41mm

Weight: 415g0.88lb

LED Indicator Power Indicator : Green

PoE Load Indicator :

Green @≤30W

Blue @>30W ≤60W

Warranty 2 year

Safety Approvals cUL / UL / CB / CE / FCC / PSE / SAA
