Poe Injector For Iot Application Pt Pse10gn - China

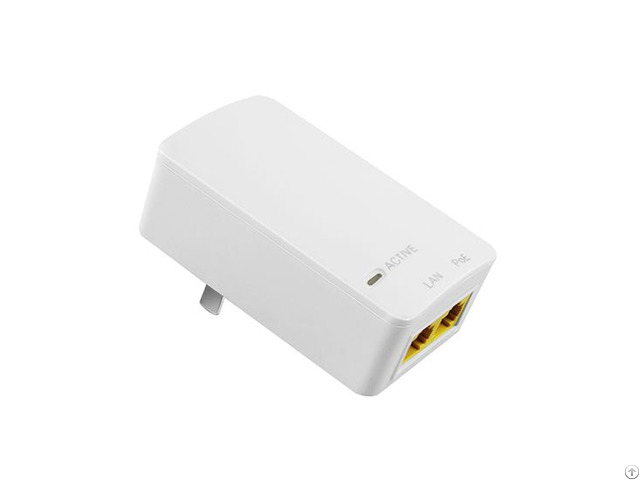

POE Injector For IOT Application PT-PSE10GN

PT-PSE10GN is a single port midspan Injector with 2 Pair PoE up to 15.4 watts of power at 48Vdc, 0.32amp.

We provide high quality PoE Injector, outdoor PoE Injector, POE for DIN Rail, dc poe injector and soon.

waterproof POE

Designed for the AF powered 15.4W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

Fully comply with IEEE802.3af devices.

outdoor PoE Injector

Enclosed in an IP40 fire retardant plastic case, designed for plug and play indoor use with compact structure.

outdoor PoE Injector operates with a wide input voltage of 100-240Vac 0.5A, The effective distance is 100 meters over Cat5e/Cat6 cables.

Can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

Parameter Description

Key Features Single-port Wall-mounted poe

Part Number PT-PSE10GN

Ports condition LAN Port*1, PoE Output Port*1

Regulatory Compliance IEEE802.3af RoHS Compliance WEEE Compliance

Pass Through Data Rates 10/100/1000 Mbps

Output Pin Assignment and Polarity: 4/5 (+), 7/8 () Output Power Voltage: 48Vdc User Port Power: 15.4W Guaranteen

Input Input Voltage: 100-240Vac Frequency: 50/60Hz Typ Working Environment Operating Temperature: 0℃ to 40℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -20℃ to 70℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 2000meters

AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV Line-Line 1.2/50us (8/20us): 1KV

Mechanical Characteristics Case: plastic Color: White Mounting: IP Rated: IP40 Connectors: Shielded RJ-45*2 Size: 83X 51X 69mm Weight: 380g(0.83lb)

LED Indicator Power Indicator: Red PoE Load Indicator: Green

Warranty 2 year

Safety Approvals CE, FCC
