    High Voltage Withstanding Busbar Automatic Inspection Machine

    Products Photos Catalog Voltage Withstanding Photos Catalog

    High Voltage Withstanding Busbar Automatic Inspection Machine

    Product Description

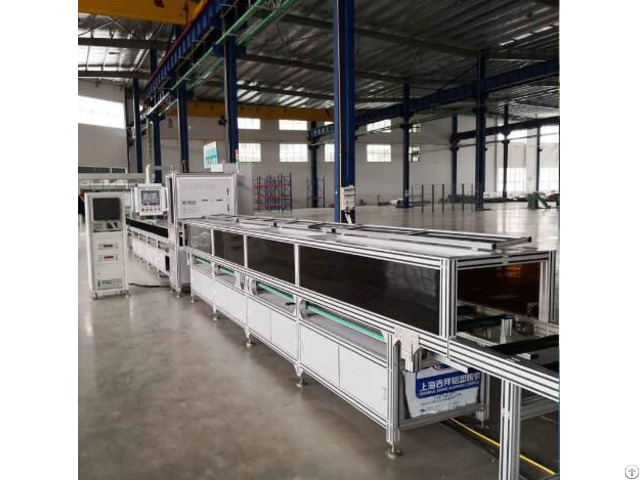

    Busbar Automatic Inspection Machine is composed of three parts, feeding position station, inspection station and discharge station.

    When the busbar enters the fixed position, the control system will select the right testing fixture according to bar code or previous assembly station to start testings of high voltage withstanding, insulation resistance and grounding, make judgement whether it’s qualified and generate testing report.

    This report can be saved, printed on site and stored remotely etc.

    It can be set according to customer’s requirements.

    Automatic inspection machine is mainly used for batch inspecting the straight busbar, elbow type should be tested on manual inspection machine.

    Kiande Specialized in manufacturing and customizing busbar production machines including Busbar Automatic Production Line, Automatic Assembly Machine, Automatic Busbar Assembly Line, Semi-Automatic Assembly Line, Busbar Manual Assembly Machine, Two-Piece Manual Assembly Machine, Busway System Inspection Line, Busbar Manual Inspection Machine, Busway System Packaging Machine, Busbar Manual Packing Machine, Busbar Profile Cutting Machine, Distribution Board Production Line, Switchgear Production Line, Distribution Box Switch Box Production Line, Switchboard Assembly Line.

    No.

    Parameters

    Model No.

    KD-JCX/NC-E/H-6(4.5)

    Height of Busbar 100mm~650mm

    Length of Busbar 1200mm~6000mm(4500mm)

    Busbar Type Suited Straight Type

    Position Type Unilateral / Middle

    Working Efficiency 2 Min/Piece( Testing time is adjustable.

    )

    Nos Of Servo 2 Axis( Z Axis/X Axis)

    Vision System Phase error Judgement( Optional)

    Printing System Bar Code Printing/ Report Printing(Optional)

    High Voltage Withstanding 0~5000V AC

    Insulation Testing 1~1000V

    Grounding Testing 0~25A

    Total Power of Equipment 3kW

    Size of Equipment L12000mm*W1200mm*H1900mm


    Company Contact:


    • Phone: 18112589839

    • Address: No.123 Suzhou Dadao East Road, suzhou , jiangsu , China

    • Email: Email

    Published date: December 29, 2019

    • Business Description: Kiande Specialized in manufacturing and customizing busbar production machines including Busbar Automatic Production Line, Automatic Assembly Machine, Automatic Busbar Assembly Line, Semi-Automatic Assembly Line, Busbar Manual Assembly Machine, Two-Piece Manual Assembly Machine, Busway System Inspection Line, Busbar Manual Inspection Machine, Busway System Packaging Machine, Busbar Manual Packing Machine, Busbar Profile Cutting Machine, Distribution Board Production Line, Switchgear Production Line, Distribution Box Switch Box Production Line, Switchboard Assembly Line.

      Our Products:

      - Busbar Automatic Production Machine

      - Busbar Semi Automatic Assembly Line

      - Busbar Manual Assembly Machine

      - High Voltage Withstanding Busbar Automatic Inspection Machine

      - Busbar Manual Inspection Machine
