Busbar Automatic Production Machine - China
price: 1.00 Dollar US$

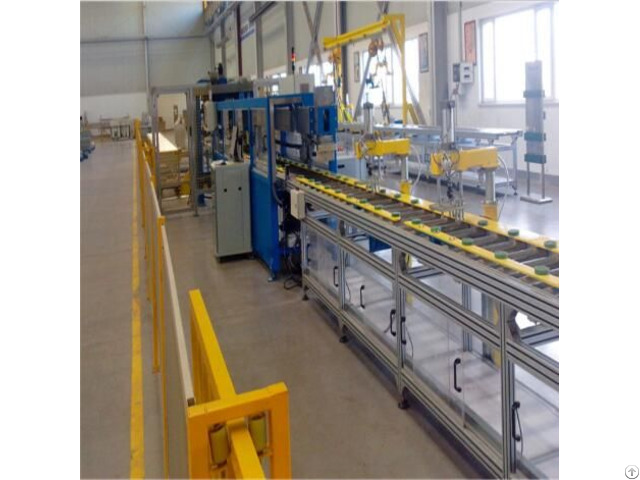

Busbar Automatic Production Machine Automatic Busbar Assembly Line
Product Description
Automatic busbar assembly line has four-piece type and two-piece type.
Busbar can be assembled automatically with rivets or bolts according to the design.
The automatic assembly machine can realize automatic assembly of busbar.
It reduces manpower and improves the product quality and working efficiency.
The working principle is to recognize the busbar type and adjust all the parameters of the machine automatically by scanning the bar code.
With the interconnection of PLC, network, touch screen and IPC etc, it can also connect with ERP and automatic inspection machine.
The automatic assembly machine has self checking functions, including self diagnosing each input and output signal, preventing failures and counting the machine’s OEE (comprehensive utilization rate) for the big data analysis in the future.
Kiande Specialized in manufacturing and customizing busbar production machines including Busbar Automatic Production Line, Automatic Assembly Machine, Automatic Busbar Assembly Line, Semi-Automatic Assembly Line, Busbar Manual Assembly Machine, Two-Piece Manual Assembly Machine, Busway System Inspection Line, Busbar Manual Inspection Machine, Busway System Packaging Machine, Busbar Manual Packing Machine, Busbar Profile Cutting Machine, Distribution Board Production Line, Switchgear Production Line, Distribution Box Switch Box Production Line, Switchboard Assembly Line.
No.
Parameters
Model No.
KD-ZDX/NC-2(4)D-6(4.5)
Maximum Busbar Height 350mm (Single layer)
Maximum Busbar Length 6000mm
Position Type Unilateral / Middle
Working Efficiency 2 min/3 Meter
Control Axis 5 Axis
Control System Network Control, Online Maintenance (Optional)
Riveting Type Automatic Riveting
Size of Equipment L25000mm*W2000mm*H1900mm
