Gfuve Portable Three Phase Electronics Meter Calibrator Gf312v2 600v 120a - China

price: 12555.00 Dollar US$

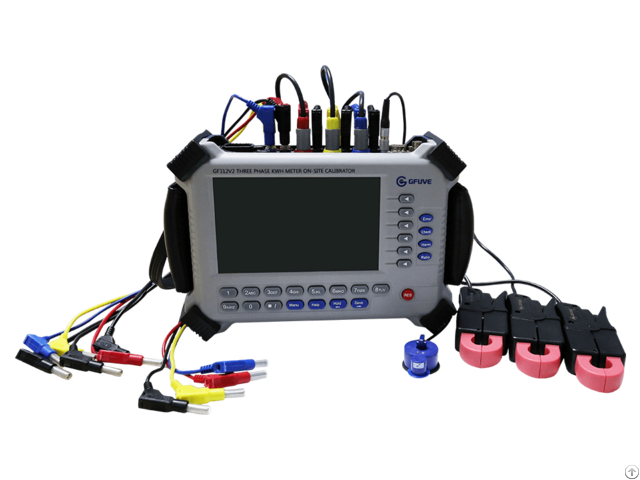

Gfuve Portable Three Phase Electronics Meter Calibrator Gf312v2 600v 120a

Products Photos Catalog Gfuve Portable Phase Photos Catalog

GF312V2 portable three phase multifunction watt-hour meter calibrator on-site is the newest product produced by our company by widely visiting users and referring to the advantages of the same kind of products home and abroad.

The measured part of the product adopts high speed A/D transmission to send DSP to conduct digital processing, which largely improves measured degree of accuracy and stability.

Central processing part adopts 32-bit ARM embedded technology to make instrument interface novel, function abundant, operation distinct and easy, and performance steady.

Class of accuracy: Class 0.02, 0.05 or 0.1, range from 12A/600V or 120A/600V, with comfort design, small size and light weight.

The model GF312V2 watt-hour meter calibrator is suit for electric power departments, measuring and quality examining departments and electric lab to field use.

Specification

Warranty: 3 years

Power: Electronic

Customized support: OBM

Place of Origin: Beijing, China

Brand Name: GFuve

Model Number: GF312V2

Accuracy: 0.02%, 0.05%, 0.1%

Power supply: External power ;Phase voltage supply; Li-Battery supply

Voltage range: 0-600V

Voltage error: ±0.05%(1mA-30); ±0.02%(30-600V)

Voltage stability: 0.01%/minute

Current range: 1mA-12A or 1mA-120A

Current Error (direct connection): ±0.05% or ±0.02%

Current Ettor (Clamp CT): ±0.2% (1mA-120A ) ±0.5% (other)

Stability: 0.01%/minute

Harmonic analysis: 2nd - 63rd

Dimension: 245x168x70 mm

Weight: 1.8 kg


Company Contact:


  • Phone: 18901232181

  • Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China

  • Email: Email


Published date: January 31, 2024

  • Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
