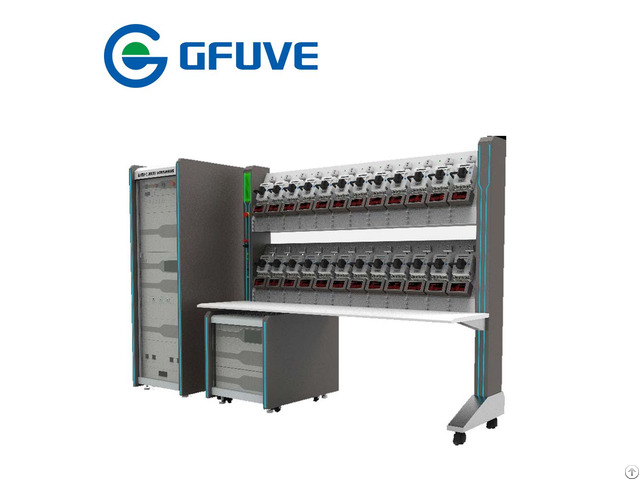

Multi Positions Single Phase Kwh Meter Test Bench Gf1000 Gfuve - China
price: 88856.00 Dollar US$
The GF1000 series multi-positions single phase kWh meter test bench can measure mechanical meters, electronic mechanical meters and electricity meter error by the way of automatic, semi-automatic or manual operation.
It composes of single phase programmable power source, high precision single phase reference energy meter, meter suspension test rack, Multi-channel server and precision clock source etc.
GF1000 meter test bench is applied in the measurement centre of grid company energy measurement department of power supply company and energy management utility, industrial enterprise and meter manufacturers.
Specification
Warranty: 3 years
Power: Electronic
Other attributes
Customized support: OEM, ODM, OBM, Software reengineering
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF1000
Accuracy: 0.02%, 0.05%, 0.1%
Power supply: AC 180-265V, or 3x220/380V±15%, frequency 50/60Hz.
Measuring range: 0-480V/0.1A-120A
Harmonic setting: 2-51 times
Power Pulse Output type: Active pulse, reactive pulse
Power Pulse Input set range: (1--599999999)/kwh
Input Energy pulse type: Active pulse, reactive pulse
Declaration of conformity: CE & CNAS certified
Communication port: RS232
Dimension: Cabinet size: 800 * 600 * 1850mm; Bench size: 2*2400 * 760 * 1846mm
Company Contact:
- Posted By: BEIJING GFUVE ELECTRONICS CO LTD
- Phone: 18901232181
- Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China
- Email:
- Website: https://www.gfuve.com/
Published date: January 31, 2024
- Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
