Energy Meter Test Bench Gf102 Gfuve R And D One Phase Kwh Watt Hour Tester - China
price: 11985.00 Dollar US$

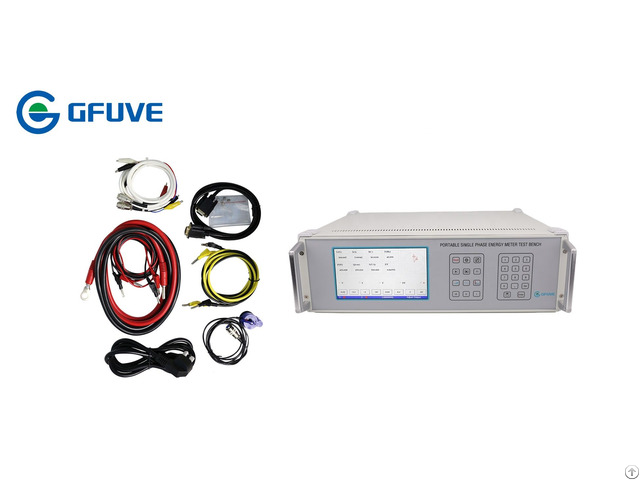

GF102 series portable single phase energy meter test bench used to test 1pc or 3pcs single phase energy meter or AC meter at same time.
Adopt mature signal synthetic and power amplifier technology, high precision voltage source and current source output from 120A/600V.
Widely used in lab and field, and then as single phase standard source.
It is suite for electricity meter manufacturing enterprises, scientific research institutes, metrological service institutions, electric power companies etc.
Specification
Customized support: OBM
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF102
Accuracy: 0.02%, 0.05%, 0.1%
Power supply: One Phase AC 100-265V, frequency 50/60Hz
Voltage and Current output range: 0-600V/0-120A
Voltage output adjustment range: 0-120%RG
Active power output stability: <0.01%RG/120s
Reactive power output stability: <0.02%RG/120s
Active power measuring accuracy: 0.02%RG or 0.05%RG
Reactive power measuring accuracy: 0.05%RG or 0.1%RG
Dimension: 455x440x150 mm
Weight: 12 kg
Company Contact:
- Posted By: BEIJING GFUVE ELECTRONICS CO LTD
- Phone: 18901232181
- Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China
- Email:
Published date: February 1, 2024
- Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
