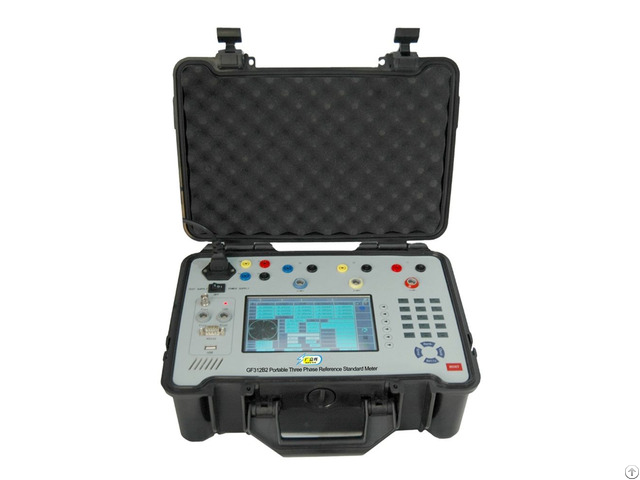

Portable Three Phase Reference Meter Gf312b2 Gfuve Calibrator Tester Watt - China
price: 25355.00 Dollar US$
GF312B2 portable three phase reference meter high accuracy 0.02%, with all kinds of optional clamp on ct and smart optical sampler.
It can be applied in electrical laboratory or on site.
it will be ensured by a combination of measures such as the use of 24bit A/D converter, DSP+32 bit ARM technology, a widely measuring range 600V/120A, adapted to typical test points of most recognized national metrological institutes.
It can be as high precision three phase reference energy meter, also three phase portable meter calibrator, test ct pt ratio, burden etc.
Specification
Warranty: 3 years
Power: Electronic
Customized support: OEM, ODM, OBM, Software reengineering
Place of Origin: Beijing, China
Brand Name: GFuve
Model Number: GF312B2
Accuracy: 0.02%, 0.05%
Power supply: 40-450V, 50/60Hz±2Hz
Voltage range: 0.04-600V
Voltage error: ±0.02% (30V-600V) ±0.05% (0.1V-30V)
Voltage resolution: 0.001V
Active power error: ±0.02% (0.1A-120A); ±0.05% (0.02A-0.1A)
Reactive power error: ±0.05% (0.01A-120A)
Active energy error: ±0.02% (0.1A-120A); ±0.05% (0.02A-0.1A)
Reactive energy error: ±0.05% (0.01A-120A)
Weight: 4 kg
Company Contact:
- Posted By: BEIJING GFUVE ELECTRONICS CO LTD
- Phone: 18901232181
- Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China
- Email:
- Website: https://www.gfuve.com/
Published date: January 31, 2024
- Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
