5a 12vdc Spst No Slim Power Relays Aldp112w - India

price: check with company for price

5a 12vdc Spst No Slim Power Relays Aldp112w

Products Photos Catalog 12vdc Spst Slim Power Photos Catalog

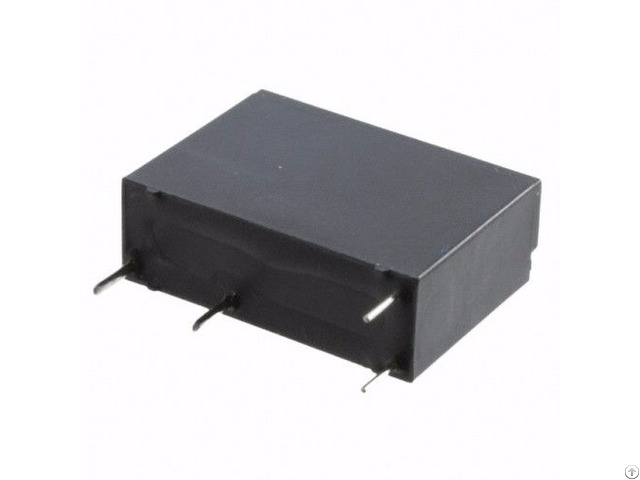

5A 12VDC SPST-NO Slim Power Relays - ALDP112W

FEATURES

1 - Nominal switching capacity

2 - Ambient temperature

3 - Excellent heat resistance and tracking performance

APPLICATIONS

• Boilers

• Air conditioner

• Refrigerator

• Hot water units

• Microwave ovens

• Fan heaters

DESCRIPTION: -

Product Number ALDP112W

Part Number ALDP112W

Protective construction Sealed Type

Terminal shape PC board through hole terminal

Contact arrangement 1 Form A

Coil voltage 12V DC

Nominal Operating Power 200mW

Pick-up voltage 75%V or less of Nominal coil voltage (Initial)

Drop-out voltage 5%V or more of Nominal coil voltage (Initial)

Max.

switching voltage 277V AC

Max.

switching current 5A

Minimum(For reference) 100mA 5V DC

Contact material AgNi type

Coil Class Class E

Expected life (Mechanical) 5x10^6

Expected life (Electrical) 2x10^5

Breakdown voltage (Contact-Contact)(Initial ) 750Vrms

Breakdown voltage (Contact-Coil)(Initial) 4000Vrms

Ambient temperature -40deg to +85deg

Operating function Single Side Stable Type

POPULAR PRODUCTS: -Non Latching relays, 40mA coil relays, 5VDC relay, SPST-NO (1 Form A) relays, 5A relays, Through Hole mounting relay, Power Relays, Over 2 Amps, 10 Amp PCB Relays, 12V PCB Relays, 5V PCB Relays, 24V PCB Relays, SPDT PCB Relays, Omron SPDT PCB Relays, PCB Micro relay, Miniature pcb mounting relay, PCB mount relay 12V, PCB latching relays, pcb non latching relays, AC power relays, DC power relay, Power saving relays .
