5vdc Miniature Power Relays - India

price: check with company for price

5vdc Miniature Power Relays

Products Photos Catalog 5vdc Miniature Power Photos Catalog

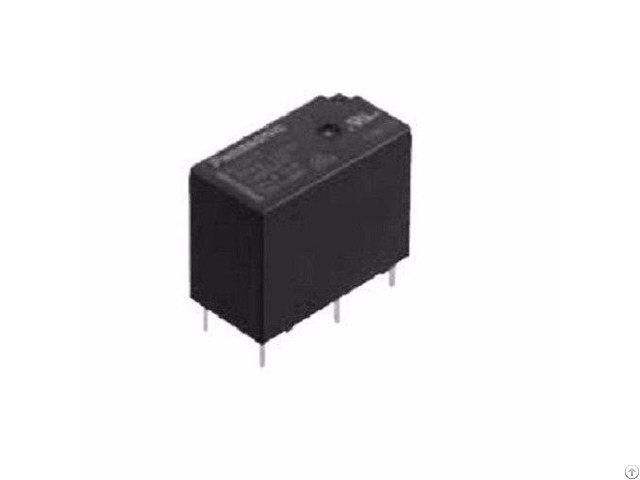

10A SPST-NO 5VDC Miniature PCB Power Relays - ALQ305

FEATURES

1 - Miniature size and small: 10(W) × 20(L) × 16(H) mm .

394(W) × .

787(L) × .

630(H) inch

2 - Compact with high capacity: 1 Form A and 1 Form C, 10 A

3 - Ambient temperature: –40°C to +85°C –40°F to 185°F

4 - High surge voltage: 8,000 V between contacts and coil

5 - High breakdown voltage: 4,000 V between contacts and coil

APPLICATIONS

1 - Household appliances

DESCRIPTION: -

Manufacturer: Panasoni c

Product Category: General Purpose Relays

RoHS: RoHS Compliant By Exemption Compliant

Product: HVAC Relays

Type: Slim Form

Contact Termination: Solder Pin

Mounting Style: Through Hole

Contact Form: SPST (1 Form A)

Contact Current Rating: 10 A

Switching Voltage: 250 VAC

Coil Voltage: 5 V

Coil Termination: Solder Pin

Coil Type: Non-Latching

Coil Resistance: 125 Ohms

Coil Current: 40 mA

Contact Material: Silver Nickel

Brand: Panasonic Industrial Devices

Packaging: Tube

Power Consumption: 200 mW

Series: ALQ

Factory Pack Quantity: 100

POPULAR PRODUCTS: -5V Power relays, 5 pin power relay, PCB 12V relay, 5 amp power relay, 24v pcb relay, DPDT PCB relay, SPST pcb relay, pcb relay nais, panasonic pcb mounted relay, pcb mount relays, panasonic 5a pcb mounting relay, general purpose small size relay, relay for lighting applications, home appliances relay, switching relay, dc pcb relay, panasonic 10a pcb relays etc


Company Contact:


  • Phone: 9810618342

  • Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad , haryana , India

  • Email: Email
