    • 200a Ac Current Clamp 20mm Hole High Precision Split Core Ct Transformer Probe Sensor - China

    price: 188.00 Dollar US$

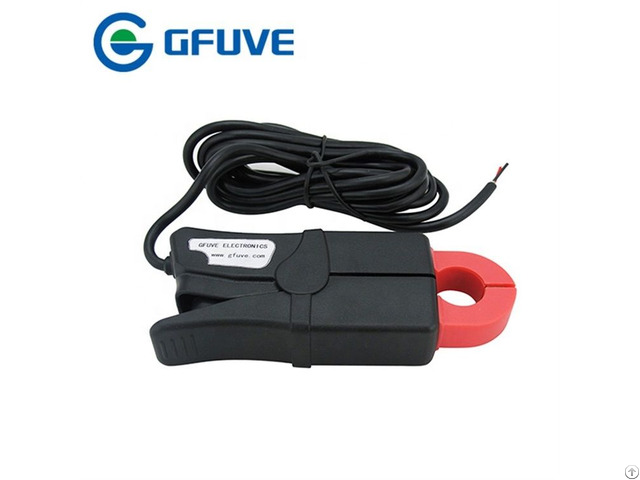

    200a Ac Current Clamp 20mm Hole High Precision Split Core Ct Transformer Probe Sensor

    Products Photos Catalog 200a Current Clamp Photos Catalog

    The model XQ20 clamp on current sensor is suitable for 200A cable online measurement, the user friendly shape make It easily clamp onto cables or bus bars, no need to interrupt the power supply and disconnect the circuit in testing, easy to carry and especially suitable for on-site online testing.

    It output 0-200mA or 0-100mA AC signal for measuring and analyzing system.

    This XQ20 current sensor can customized two stall 10A/100A or 20A/200A, 1V or 2V output.

    It have been used many in power quality analyzer manufacturers, high reliability and accuracy 0.1%.

    Electrical parameters

    Ratio: 1000: 1, 2000: 1 or 2500: 1 (customized)

    Accuracy class: 0.1%, 0.2%

    Primary current: 0 - 100A AC, 0 - 200A AC

    Secondary current: 0 - 100mA AC, 0 - 200mA AC (customized)

    Max.

    Cont.

    Input current: 120A, 240A

    Load capacity: ≤20Ω, Standard 4Ω

    Over voltage category: CAT III 600V

    Output signal (AC current): From 0 to 200mA AC at nominal input current

    Output signal (AC voltage): From 0 to 5V AC at nominal input current

    Signal ratio: 1mA/A, 1mV/A, 10mV/A, 100mV/A

    Frequency range: 10Hz-200KHz

    Dielectric strength: 3KV 50Hz/60Hz at 1minute

    Temperature range: -20°C to +55°C

    Output: 2.5 meter cable with D01 connector

    Max.

    voltage not insulated conductors: 720 V

    Standard: EN 61010-1, EN 61010-2-032, EN 61010-2-031

    IEC60044-1, & IEC61869-2, 600V CAT III

    Installation: Clamp type

    Output mode: Lead output (2.5m)

    Connector: BNC, 4mm banana, Audio plug, customized Mechanical parameters

    Dimensions (L x W x H) (mm): 52.5 x 137.5 x 28

    Weight (g): 400

    Holding wire diameter (mm): φ20

    Max.

    jaw opening (mm): 20

    Jaw color: Red, yellow, blue, green, black

    Material: PC+ABS+Polycarbonate, UL94 V0


    Company Contact:


    • Phone: 18901232181

    • Address: Oriental HuaRui A No. 150 Guanzhuang Road Chaoyang District Beijing, 100024, China, BEIJING , China

    • Email: Email


    Published date: February 2, 2024

    • Business Description: Beijing GFUVE Electronics Co., Ltd. was established in 2005 - It combined science, industry and trade together as one high-tech enterprise.
