12vdc Pcb Power Relays Jw2sn Dc12v - India

price: check with company for price

12vdc Pcb Power Relays Jw2sn Dc12v

Products Photos Catalog 12vdc Pcb Power Relays Photos Catalog

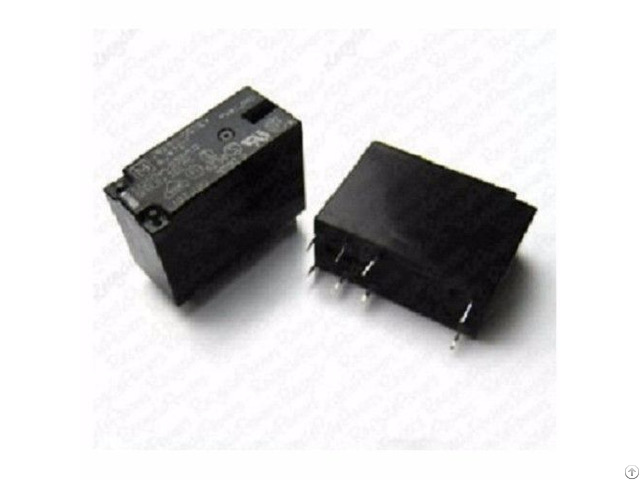

5A 12VDC DPDT Sealed PCB Power Relays - JW2SN-DC12V

FEATURES

• Miniature package with universal

terminal footprint

• High dielectric withstanding for

transient protection:

10, 000 V surge in μs between coil and

contact

• Sealed construction

• Class B coil insulation types

available

• TV rated (TV-5) types available

(only for 1 Form A type)

• VDE, TÜV, SEMKO, SEV, FIMKO, TV-5

also approved

• Sockets are available.

APPLICATIONS

1 - Home appliances

TV sets, VCR, Microwave ovens

2 - Office machines

Photocopiers, Vending machines

3 - Industrial equipment

NC machines, Robots, Temperature

controllers

DESCRIPTION: -

Manufacturer: Panasonic

Product Category: General Purpose Relays

RoHS: RoHS Compliant By Exemption Compliant

Brand: Panasonic Industrial Devices

Contact Termination: Solder Pin

Mounting Style: Through Hole

Contact Form: DPDT (2 Form C)

Coil Voltage: 12 V

Coil Termination: Solder Pin

Coil Type: Non-Latching

Coil Resistance: 270 Ohms

Coil Current: 44 mA

Contact Material: Silver Tin Oxide

Packaging: Bulk

Power Consumption: 530 mW

Factory Pack Quantity: 100

POPULAR PRODUCTS: -Omron G2RL Relay, Omron G5V relay, Omron G5LE Relay, Omron G5V-2 Relays, Power latch relay, Power magnetic relay, power monitering relay, power off relay, power on relay, Power pcb relay supplier, pcb cube relay, general purpose relay, Electronic pcb relay, electrical relays, power relay 16a, power relay 10a, 5vdc power relay, 5 pin power relay, 8 pin power relay etc.


Company Contact:


  • Phone: 9810618342

  • Address: SCF#- 17, 2nd Floor, Opp. Satyam Guest House, Sec. 16, Faridabad -121002, Haryana, faridabad , haryana , India

  • Email: Email

Published date: November 9, 2016
