24vdc Power Relay - India

price: check with company for price

24vdc Power Relay

Products Photos Catalog 24vdc Power Relay Photos Catalog

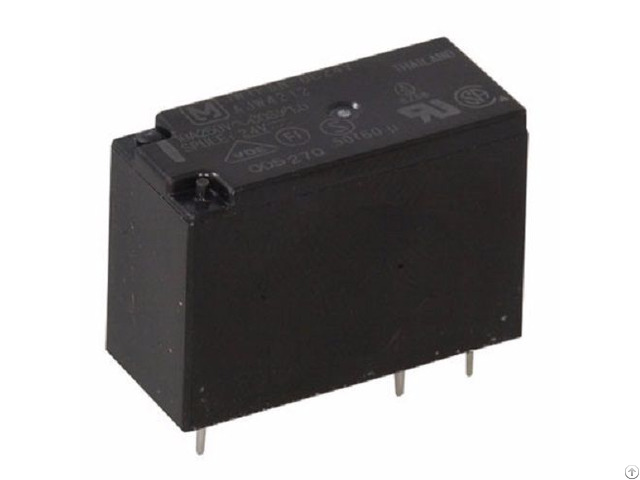

10A 24VDC SPDT SEALED PCB Power Relay- JW1FSN-DC24V

FEATURES: -

• Miniature package with universal terminal footprint

• High dielectric withstanding for transient protection: 10, 000 V surge in μs between coil and contact

• Sealed construction

• Class B coil insulation types available

• TV rated (TV-5) types available (only for 1 Form A type)

• VDE, TÜV, SEMKO, SEV, FIMKO, TV-5 also approved

• Sockets are available.

APPLICATIONS: -

1 - Home appliances

2 - Office machines

3 - Industrial equipment

DESCRIPTION: -

Manufacturer: Panasonic

Product Category: General Purpose Relays

RoHS: RoHS Compliant By Exemption Details

Brand: Panasonic Industrial Devices

Product: Low Profile Relays

Type: Miniature

Coil Voltage: 24 VDC

Contact Form: SPDT (1 Form C)

Contact Current Rating: 10 A

Contact Termination: Solder Pin

Mounting Style: Through Hole

Switching Voltage: 250 VAC, 30 VDC

Coil Termination: Solder Pin

Coil Type: Non-Latching

Coil Resistance: 1.1 kOhms

Coil Current: 22 mA

Contact Material: Silver Tin Oxide

Contact Rating: 10 A

Height: 20 mm

Length: 28.6 mm

Maximum Switching Current: 10 A

Packaging: Bulk

Power Consumption: 530 mW

Factory Pack Quantity: 100

Width: 12.8 mm

POPULAR PRODUCTS: -Omron G2RL Relay, Omron G5V relay, Omron G5LE Relay, Omron G5V-2 Relays, Power latch relay, Power magnetic relay, power monitering relay, power off relay, power on relay, Power pcb relay supplier, pcb cube relay, general purpose relay, Electronic pcb relay, electrical relays, power relay 16a, power relay 10a, 5vdc power relay, 5 pin power relay, 8 pin power relay etc.
