S5P4418 System on Module

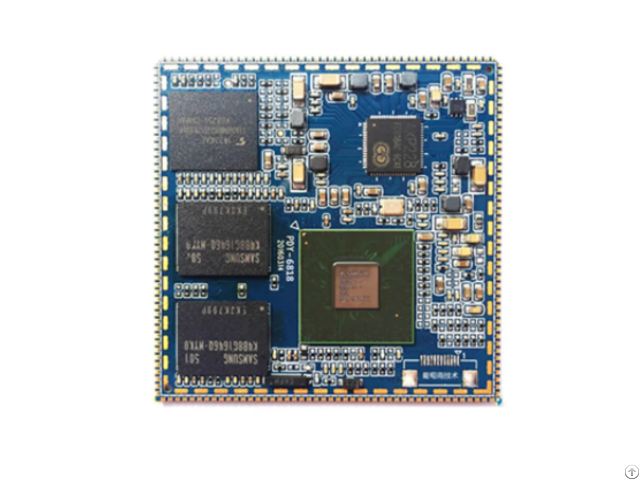

G4418 system on module take Samsung S5P4418 as CPU and be designed stamp hole.

It is of strong expandability, and supports 184 PIN, 1.4GHz.

Its PCB designed 8 layers in immersion gold, which is of the best electrical specification and anti-interference characteristic and stable features.

More it inland PMU and coulomb meter charging.

G4418 System on Module Characteristic Parameters

G4418 System on Module Structural Features

Appearance: Stamp hole

Dimension: 52mm x 52mm x 3mm

Pin Pitch: 1.1mm

Pin Pad Dimensions: 1.3mm X 0.7mm

Pin Quantity: 184 PIN

Craft: 8 layers immersion gold design

OS: Android 5.1 - Linux + qt, Ubuntu G4418 System on Module System Configuration

CPU: S5P4418

RAM: 1GB as default/2GB as optional

ROM: 8GB as default /16GB/32GB eMMC as optional

Power IC : AXP228, DVFS, Coulomb-meter

Ethernet : RTL8211, the gigabit Ethernet PHY

G4418 System on Module Interface Features

LCD : TTL, LVDS, MIPI

Touch: Capacitive screen, resistive screen

Audio : AC97/IIS, supports record and play

SD Card: 2 x SDIO output channel

EMMC: Onboard emmc, no extra pin leaded

Ethernet: The gigabit Ethernet PHY

USB host : 1 x HOST2.0, 1x HISIC

USB OTG: 1 x OTG2.0

UART: 4 x serial ports, Flow control

PWM: 4 x PWM output

IIC: 2 x IIC output

SPI: 1 x SPI output

ADC: 2 x ADC output

Camera: 1 x BT656/BT601, 1x MIPI output

HDMI: HD audio and video output, audio and video synchronization output

VGA : LCD output

Boot Config: No, the system on module boot automatically
