Samsung S5p6818 Single Board Computer - China

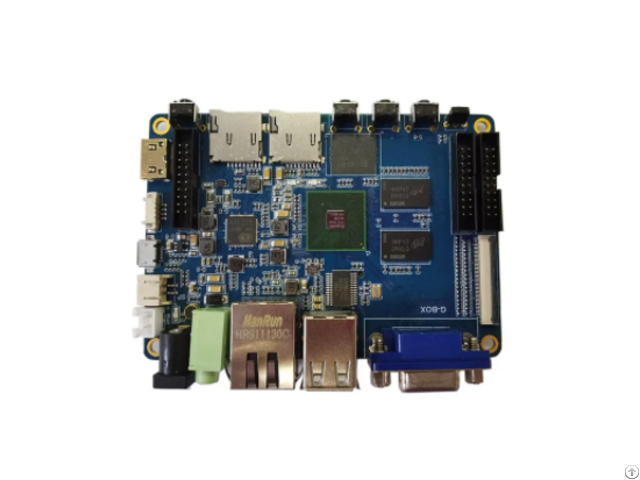

Samsung S5P6818 Single Board Computer

G6818 single board computer is almost one third of G6818 development board size, but with better performance than G6818 development board.

It nearly covers all the peripheral function of development board, as well as onboard VGA, USB WIFI/BT two in one module, etc.

G6818 Single Board Computer Functions and Features

Core: ARM Cortex-A53 octa core

Frequency： 1.4GHz+*8

Memory: 1GB DDR3, 2GB DDR3 optional

Flash: 4GB/8GB/16GB/32GB eMMC optional, default 8GB

RGB: 24bit RGB

LVDS 8bit LVDS

VGA VGA interface

CAM MIPI DSI

USB HOST 2 x USB HOST, support more USB devices used together

USB OTG USB OTG

UART 2 x TTL electrical level UART interface

TF Card 2 x TF card

LED 2 x LED reset key

Switch Software power on/off switch

Speaker External speaker

MIC MIC input

Earphone Earphone output

Switch The launch configuration switch design

Backlight Backlight stepless adjustment

HDMI YES

TP 5 points capacitive touch screen

WIFI/BT USB interface WIFI/BT two-in-one module

SPI, I2C, UART YES

Video Decoding MPEG4, H.

263, H.

264, MJPEG and all most video decoding

Graphics 2D, 3D high-performance graphics acceleration

RTC YES

Ethernet The gigabit Ethernet RTL8211E

Camera BT656/BT601/MIPI camera interface

GPS YES

GPRS YES

USB 3G YES

USB Mouse/USB Keyboard YES

IR YES
